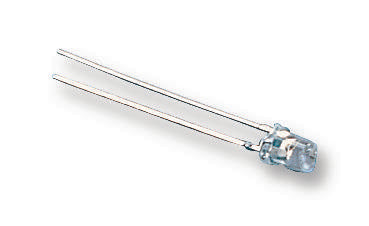

BROADCOM - HLMP-DB25-B0000 - LED, Blue, Through Hole, T-1 3/4 (5mm), 20 mA, 3.2 V, 470 nm
- LED Colour: Blue
- LED Mounting: Through Hole
- LED Case Size: T-1 3/4 (5mm)
- Forward Current If: 20mA
- Forward Voltage: 3.2V
- Wavelength Typ: 470nm
- Luminous Intensity: 40mcd
- Viewing Angle: 25°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Active Area Width: 0.5mm
- Bulb Size: T-1 3/4 (5mm)
- Current If Luminous Intensity: 20mA
- Dominant Wavelength: 462nm
- External Diameter: 5mm
- External Length / Height: 8.71mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 4V
- Input Voltage Max: 5V
- Input Voltage Min: 4V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Length: 22.89mm
- Lead Spacing: 2.54mm
- Luminous Intensity @ If Min: 40mcd
- Luminous Intensity Typ: 100mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +80°C
- PIV Max: 5V
- Peak Wavelength: 426nm
