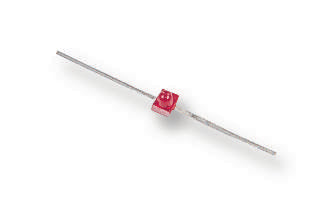

BROADCOM - HLMP-6300 - LED, Red, Through Hole, 1.9mm, 30 mA, 1.8 V, 626 nm
- LED Colour: Red
- LED Mounting: Through Hole
- LED Case Size: 1.9mm
- Forward Current If: 30mA
- Forward Voltage: 1.8V
- Wavelength Typ: 626nm
- Luminous Intensity: 10mcd
- Viewing Angle: 90°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 2A - 4 weeks
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: 1.9mm
- Current If Luminous Intensity: 10mA
- Dominant Wavelength: 626nm
- External Depth: 2.2mm
- External Length / Height: 2.15mm
- External Width: 2.2mm
- Forward Current If Max: 30mA
- Forward Voltage VF Max: 5V
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.2mm
- Lead Length: 11mm
- Luminous Intensity Typ: 3mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
- PIV Max: 5V
- Peak Forward Current: 30mA
- Peak Wavelength: 635nm
- Voltage Vf Typ: 1.6V
