HLMP-2785 LED Bar Module, Yel BROADCOM

BROADCOMUGS :HLMP-2785 Code de commande:1003261

Prix:
Prix ​​promotionnel€8,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1091 unité)

Documents et téléchargements

description

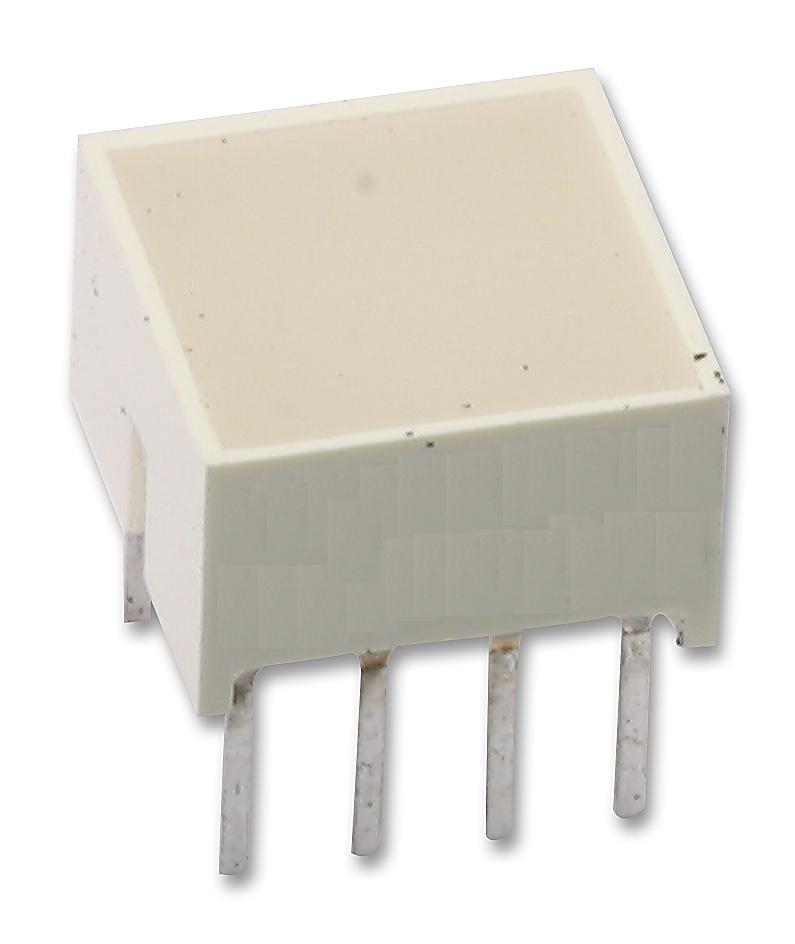

BROADCOM - HLMP-2785 - LED Bar Graph Array, Yellow, 20 mA, 2.1 V, 70 mcd, 8 LEDs, 8.89mm x 19.05mm

  • LED Colour: Yellow
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Luminous Intensity: 70mcd
  • No. of LEDs: 8LEDs
  • Display Size: 8.89mm x 19.05mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • External Depth: 6.22mm
  • External Length / Height: 10.16mm
  • External Width: 20.32mm
  • Forward Voltage VF Max: 1.8V
  • LED Configuration: Bar Module
  • Lead Cross-section Depth: 0.51mm
  • Lead Cross-section Width: 0.58mm
  • Lead Spacing: 2.54mm
  • Light Area Height: 8.89mm
  • Light Area Width: 19.05mm
  • Luminous Intensity Typ: 70mcd
  • Luminous Intensity per Segment @ If Typ: 70mcd
  • No. Segments: 1
  • Nom Current If per Segment: 20mA
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 6V
  • Peak Forward Current: 25mA
  • Peak Wavelength: 583nm
  • Row Pitch: 7.62mm
  • Wavelength Typ: 583nm
