HEDS-9040#J00 Encoder, Rotary, 1024PPR, 3CH BROADCOM

BROADCOMUGS :HEDS-9040#J00 Code de commande:1654869

Prix:
Prix ​​promotionnel€77,91

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (28 unité)

Documents et téléchargements

description

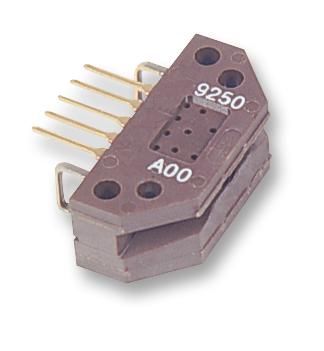

BROADCOM - HEDS-9040#J00 - Rotary Encoder, Optical, Incremental, 1024 PPR, 0 Detents, Vertical, Without Push Switch

  • Supply Voltage Min: 4.5V
  • Supply Voltage Max: 5.5V
  • No. of Channels: 3 Channel
  • Rotational Speed Max: 30000rpm
  • Encoder Resolution: 1024
  • Product Range: HEDS-9040 Series
  • SVHC: No SVHC (15-Jan-2018)
  • External Depth: 11.7mm
  • External Length / Height: 10.2mm
  • External Width: 26.7mm
  • Frequency Max: 100kHz
  • No. of Channels: 3Channels
  • No. of Pulses Per Revolution: 1024CPR
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +100°C
  • Rotational Speed: 30000rpm
  • Supply Voltage Range: 4.5V to 5.5V
  • Type: Incremental Encoder
