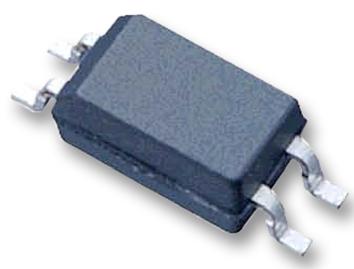

HCPL-354-06AE Optocoupler, SMD, Transistor O/P, AC BROADCOM

BROADCOMUGS :HCPL-354-06AE Code de commande:1244542

Prix:
Prix ​​promotionnel€1,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13335 unité)

Documents et téléchargements

description

BROADCOM - HCPL-354-06AE - Optocoupler, Transistor Output, 1 Channel, SOIC, 4 Pins, 50 mA, 3.75 kV, 50 %

  • No. of Channels: 1 Channel
  • Optocoupler Case Style: SOIC
  • No. of Pins: 4Pins
  • Forward Current If Max: 50mA
  • Isolation Voltage: 3.75kV
  • CTR Min: 50%
  • Collector Emitter Voltage V(br)ceo: 35V
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Bodies: CSA, DIN, EN, IEC, UL
  • Current If CTR: 1mA
  • Current Transfer Ratio (higher rating) Min: 20%
  • Current Transfer Ratio Max: 150%
  • Current Transfer Ratio Min: 50%
  • Fall Time tf: 3000ns
  • Input Current: 20mA
  • No. of Channels: 1Channels
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +100°C
  • Optocoupler Output Type: Phototransistor
  • Output Voltage: 35V
  • Output Voltage Max: 80V
  • Rise Time: 4000ns
