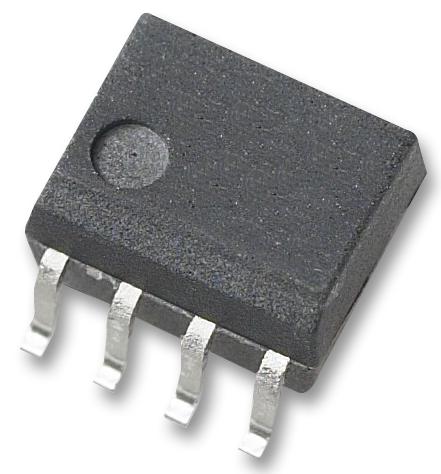

HCPL-0723-000E Optocoupler, SMD, High Speed, CMOS BROADCOM

BROADCOMUGS :HCPL-0723-000E Code de commande:9130209

Prix:
Prix ​​promotionnel€12,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3165 unité)

Documents et téléchargements

description

BROADCOM - HCPL-0723-000E - Optocoupler, Digital Output, 1 Channel, 3.75 kV, 50 Mbaud, SOIC, 8 Pins

  • No. of Channels: 1 Channel
  • Isolation Voltage: 3.75kV
  • Data Rate: 50Mbaud
  • Optocoupler Case Style: SOIC
  • No. of Pins: 8Pins
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • Approval Category: IEC/EN/DIN EN 60747-5-2
  • CMR: 10kV/µs
  • External Depth: 3.937mm
  • External Length / Height: 3.175mm
  • External Width: 5.08mm
  • Fall Time tf: 6ns
  • Height: 3.175mm
  • Input Current: 10µA
  • Lead Spacing: 1.27mm
  • Logic Input Compatibility: +5V CMOS
  • Logic Output Compatibility: +5V CMOS
  • Multiple Data Rates: 50
  • No. of Channels: 1Channels
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Optocoupler Output Type: Logic Gate
  • Output Current: 10mA
  • Output Voltage: 5V
  • Output Voltage Max: 6.5V
  • Rise Time: 8ns
  • Row Pitch: 5.994mm
  • Supply Voltage Max: 5.5V
  • Supply Voltage Min: 4.5V
