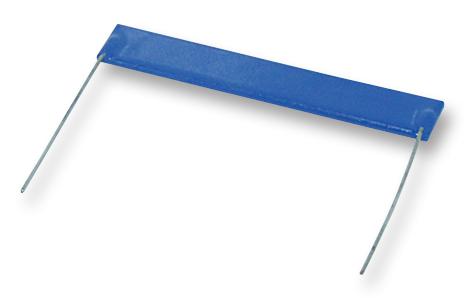

CGS - TE CONNECTIVITY - HB3100MFZRE - Through Hole Resistor, 0.1 Gohm, HB, 4 W, ± 1%, Radial Leaded, 15 kV
- Resistance: 0.1Gohm
- Product Range: HB Series
- Power Rating: 4W
- Resistance Tolerance: ± 1%
- Resistor Case Style: Radial Leaded
- Voltage Rating: 15kV
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 3mm
- External Length / Height: 10.4mm
- External Width: 52mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Resistor Mounting: Through Hole
