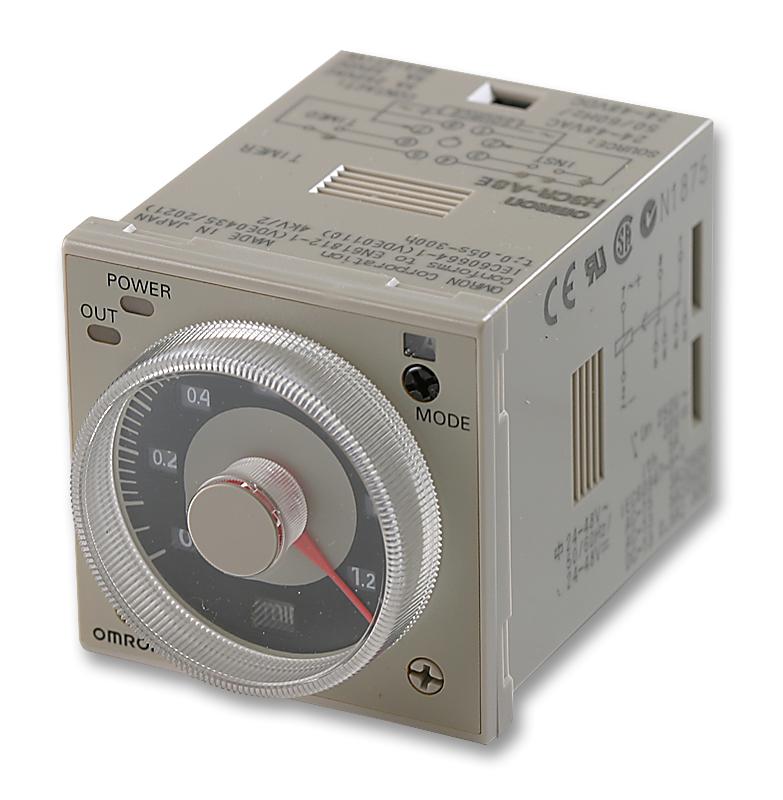

OMRON - H3CR-A8E 24-48VAC/VDC - Analogue Timer, Multifunction, H3CR-A, On-Delay, 14 Ranges, 0.05 s, 300 h, 2 Changeover Relays
- Product Range: H3CR-A Series
- Timer Functions: On-Delay
- No. of Timing Ranges: 14Ranges
- Time Min: 0.05s
- Time Max: 300h
- Timer Output: 2 Changeover Relays
- Supply Voltage Max: 48V
- Current Rating Nom: 5A
- Connection / Termination: Plug-In
- Panel Cutout Height: 45mm
- Panel Cutout Width: 45mm
- Adjustment Type: Rotary
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: 24V
- Contact Configuration: SPDT
- Contact Rating: 5A
- Contact Voltage AC Max: 48V
- Contact Voltage DC Max: 48V
- Delay Time Range: 0.05s to 300h
- External Depth: 67mm
- External Length / Height: 48mm
- External Width: 48mm
- Height: 48mm
- No. of Pins: 8Pins
- Nom Input Voltage: 48V
- Operating Time Range: 0.05sec - 300hour
- Relay Mounting: Panel
- Repeat Accuracy +: 0.3%
- Reset Time: 0.1s
- Supply Voltage AC Max: 48V
- Supply Voltage AC Min: 24V
- Supply Voltage DC Max: 48V
- Supply Voltage DC Min: 24V
- Switch Current Max: 5A
- Switching Current Max: 5A
- Timing Adjustment: Knob
