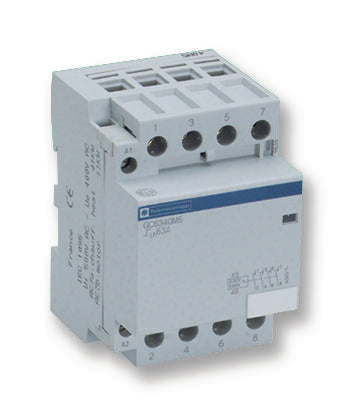

SCHNEIDER ELECTRIC - GC4040M5 - Contactor, DIN Rail, 250 VAC, 4PST-NO, 4 Pole
- Load Current Inductive: -
- Relay Mounting: DIN Rail
- Operating Voltage: 250VAC
- Contact Configuration: 4PST-NO
- No. of Poles: 4 Pole
- Switching Power AC3: -
- Switching Current AC1: 40A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: 240V
- Switching Power AC1: -
- Load Current Resistive: -
- Switching Current AC3: -
- Product Range: TeSys GC Series
- SVHC: No SVHC (15-Jan-2018)
- Coil Holding Power: 6.5VA
- Coil Pull-in Power: 53VA
- Coil Voltage: 230V
- Coil Voltage Max: 415VAC
- Coil Voltage Min: 230VAC
- Contact Current: 40A
- Contact Current AC Max: 40A
- Contact Current Max: 40A
- Contact Voltage AC Max: 415V
- Contact Voltage AC Nom: 250V
- Contact Voltage VAC: 415V
- External Depth: 65mm
- External Height: 81mm
- External Length / Height: 81mm
- External Width: 52.5mm
- Main Contact Current AC1 Max: 40A
- Module Width: 3
- Operating Frequency: 50Hz
- Relay Terminals: Screw
- Relay Type: Contactor
