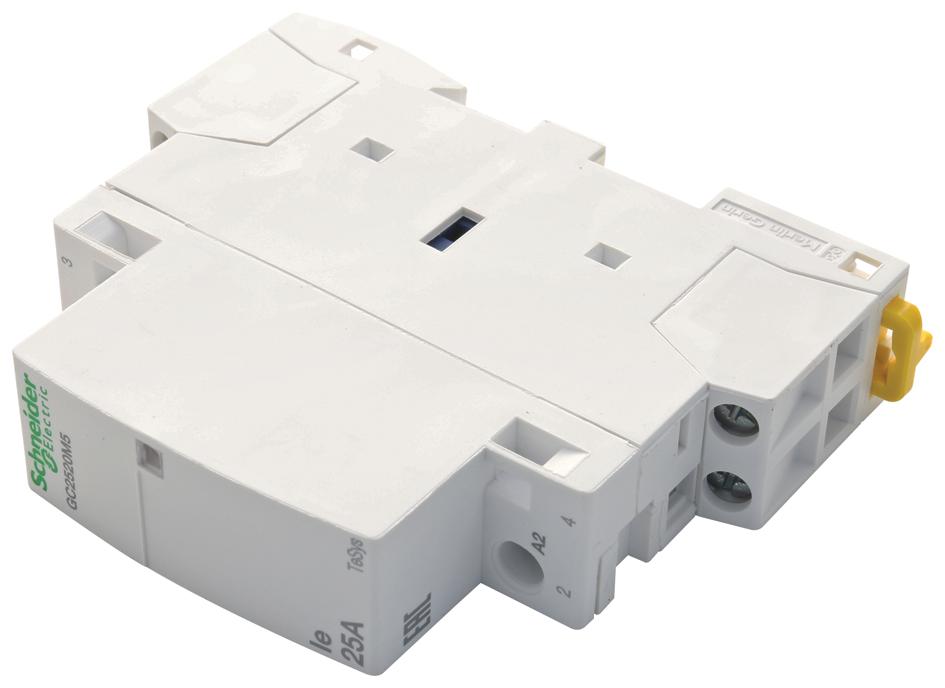

SCHNEIDER ELECTRIC - GC2520M5 - Contactor, Modular, DIN Rail, 250 VAC, DPST-NO, 2 Pole
- Load Current Inductive: -
- Relay Mounting: DIN Rail
- Operating Voltage: 250VAC
- Contact Configuration: DPST-NO
- No. of Poles: 2 Pole
- Switching Power AC3: -
- Switching Current AC1: 25A
- Coil Voltage VAC Nom: 240V
- Coil Voltage VDC Nom: 240V
- Switching Power AC1: -
- Load Current Resistive: -
- Switching Current AC3: 8.5A
- Product Range: TeSys GC Series
- SVHC: No SVHC (07-Jul-2017)
- Coil Holding Power: 3.8VA
- Coil Pull-in Power: 15VA
- Coil Voltage: 230V
- Coil Voltage Max: 250VAC
- Coil Voltage Min: 230VAC
- Contact Current: 25A
- Contact Current AC Max: 25A
- Contact Current Max: 25A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage VAC: 250V
- External Depth: 65mm
- External Height: 81mm
- External Length / Height: 81mm
- External Width: 17.5mm
- Main Contact Current AC1 Max: 25A
- Module Width: 1
- Operating Frequency: 50Hz
- Relay Terminals: Screw
- Relay Type: Contactor
