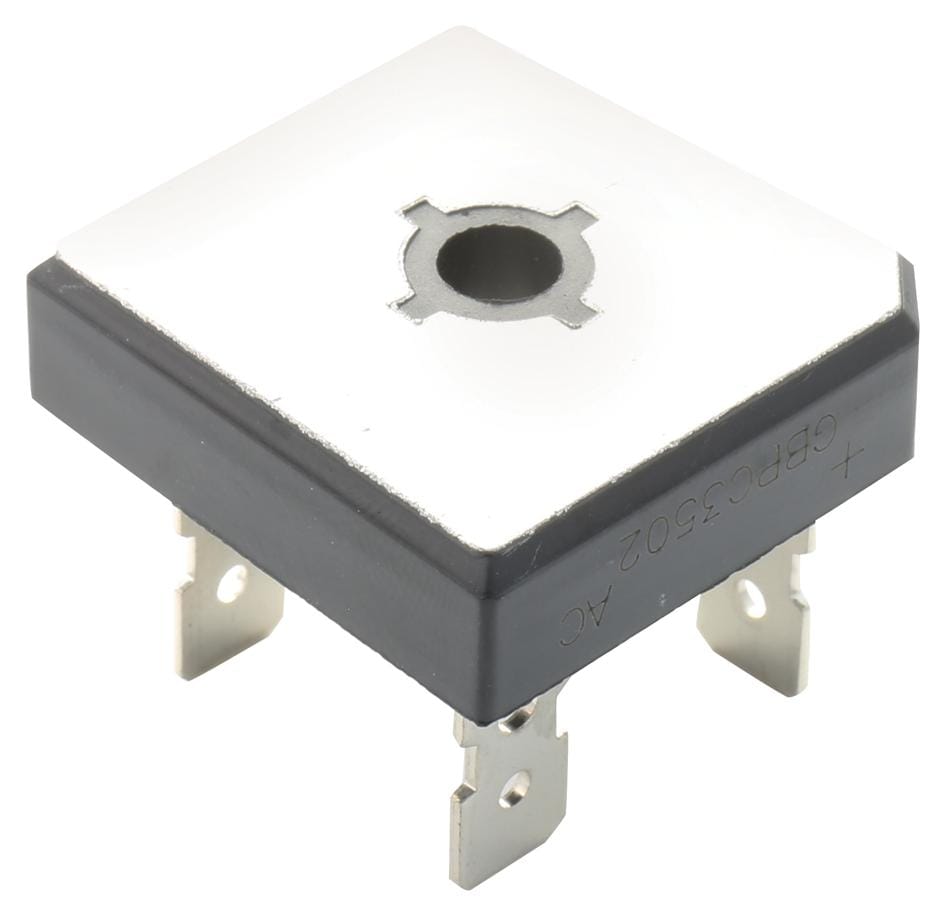

MULTICOMP PRO - GBPC3502+ - Bridge Rectifier, Single Phase, 200 V, 35 A, Module, 4 Pins, 1.1 V
- No. of Phases: Single Phase
- Repetitive Reverse Voltage Vrrm Max: 200V
- Forward Current If(AV): 35A
- Bridge Rectifier Case Style: Module
- Forward Voltage VF Max: 1.1V
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: GBPC 35 Series
- SVHC: No SVHC (27-Jun-2018)
- Body Height Max: 11.23mm
- Case Temperature Tc: 55°C
- Case Temperature Tc @ If: 55°C
- Current Ir Max: 5µA
- Current Temperature: 25°C
- Diode Mounting Type: SMD
- Diode Type: Bridge Rectifier
- External Depth: 29mm
- External Length / Height: 11.23mm
- External Width: 19.1mm
- Fixing Hole Diameter: 5.59mm
- Flammability Rating: UL 94V-0
- Forward Surge Current Ifsm Max: 400A
- Isolation Voltage: 2.5kV
- Junction Temperature Tj @ Irrm: 150°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -50°C
- Junction to Case Thermal Resistance A: 1.5°C/W
- Operating Temperature Min: -50°C
- Operating Temperature Range: -50°C to +150°C
- Output Current Max: 35A
- RMS Input Voltage: 140V
- Surge Current Frequency: 60Hz
- Voltage Vrsm: 300V
