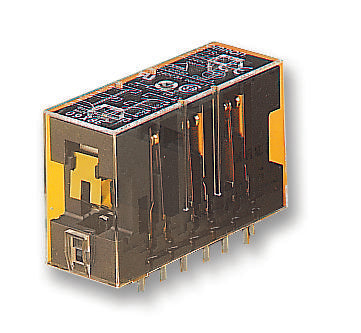

OMRON - G7S-4A2B-E DC24 - Safety Relay, 24 VDC, 4PST-NO, DPST-NC, G7S, Socket, 6 A, Quick Connect
- Coil Voltage: 24VDC
- Contact Configuration: 4PST-NO, DPST-NC
- Product Range: G7S Series
- Relay Mounting: Socket
- Contact Current: 6A
- Relay Terminals: Quick Connect
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 24V
- Contact Material: Silver
- IP Rating: -
- Approval Bodies: EN
- Approvals & Standards: CE, CSA, UL, VDE
- Approvals / Standards: CSA 22-2 No.14, UL 508
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 110%
- Coil Resistance: 800ohm
- Coil Voltage VDC Nom: 24V
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 24V
- DC Coil Power: 0.8W
- External Depth: 37mm
- External Height: 62mm
- External Length / Height: 62mm
- External Width: 22.5mm
- Inductive Current Rating AC: 3A
- Inductive Current Rating DC: 1A
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 10000000
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Operating Time: 50ms
- Release Time: 50ms
- Resistive Current Rating: 3A
- Switch Current Max: 6A
