description

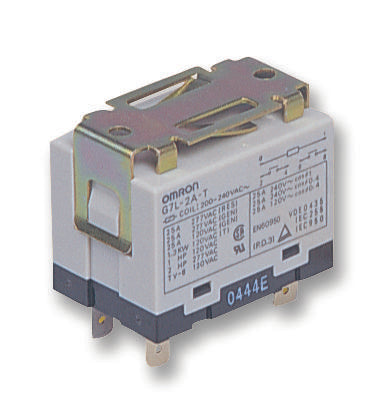

OMRON - G7L-2A-P DC6 - General Purpose Relay, G7L Series, Power, Non Latching, DPST-NO, 6 VDC, 25 A
- Contact Configuration: DPST-NO
- Coil Voltage: 6VDC
- Contact Current: 25A
- Product Range: G7L Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 277VAC
- Relay Terminals: Solder
- Contact Voltage VDC: -
- Contact Material: Silver Alloy
- Coil Resistance: 18.9ohm
- Approvals & Standards: CSA, IEC, UL
- Coil Current: 317mA
- Coil Voltage VDC Nom: 6V
- Contact Current Max: 20A
- Contact Voltage AC Nom: 250V
- External Depth: 52.5mm
- External Height: 41mm
- External Width: 35.5mm
- Nom Operating Power: 1.9W
- Relay Type: Power
