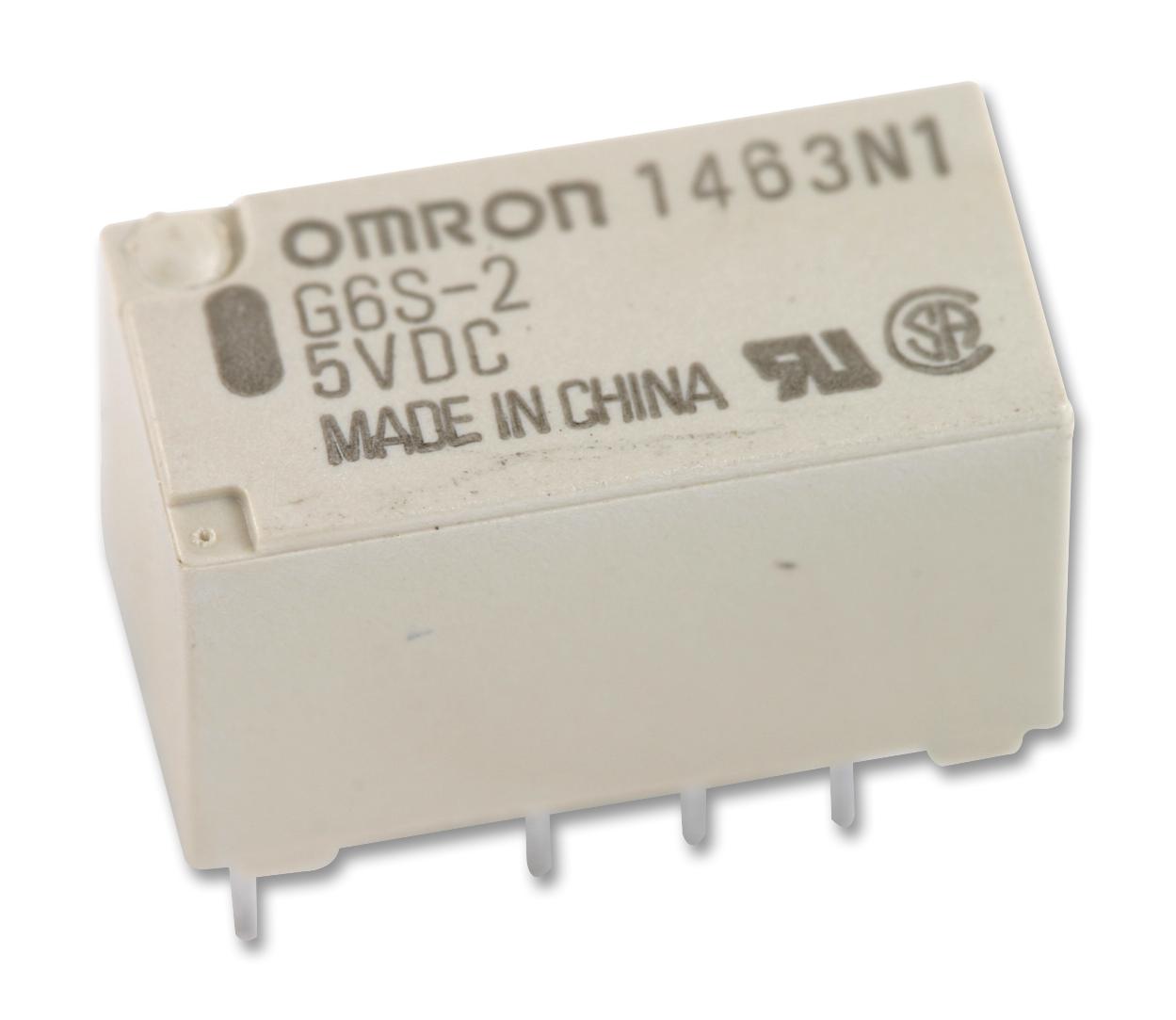

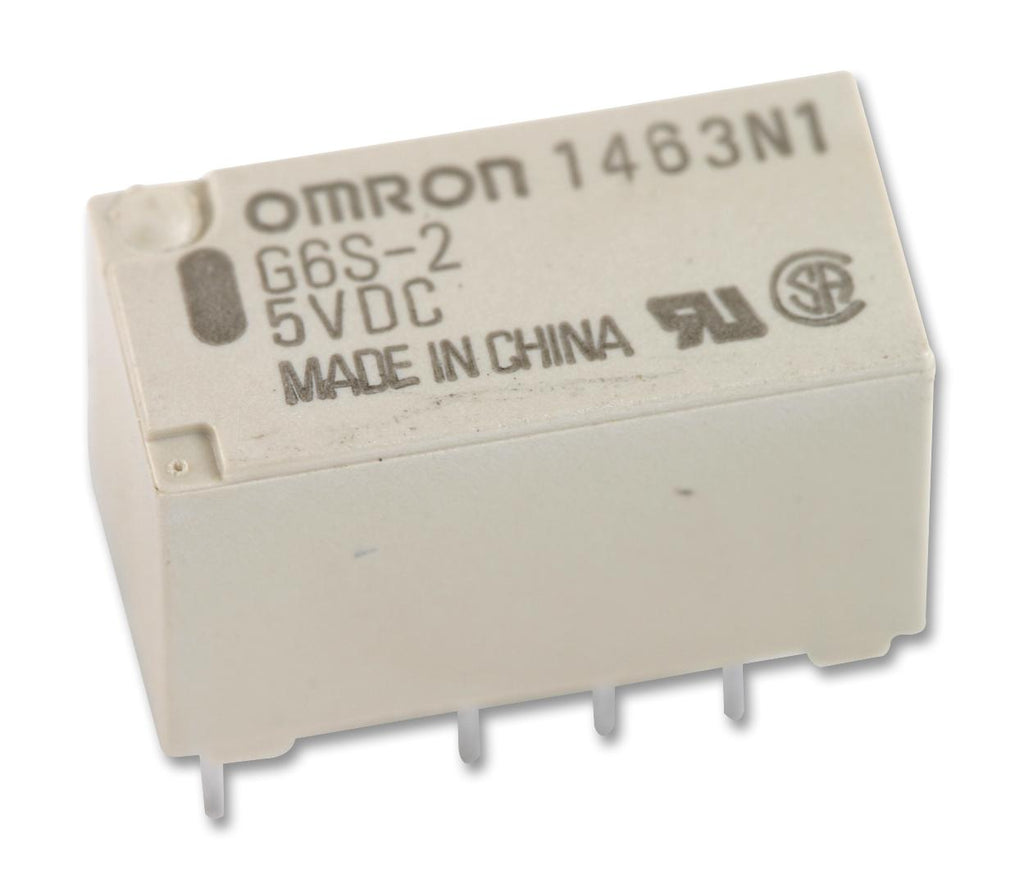

G6S-2 4 DC5 Relay, Signal, DPDT, 30Vdc, 2A Omron

OMRONUGS :G6S-2 4 DC5 Code de commande:2076216

Prix:
Prix ​​promotionnel€5,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (71 unité)

Documents et téléchargements

description

OMRON - G6S-2 4.5DC - Signal Relay, 4.5 VDC, DPDT, 2 A, G6S, Through Hole, Non Latching

  • Coil Voltage: 4.5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: G6S Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver Gold
  • Coil Resistance: 145ohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 31mA
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 4.5V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 220V
  • External Depth: 14.8mm
  • External Height: 9.2mm
  • External Width: 7.3mm
