description

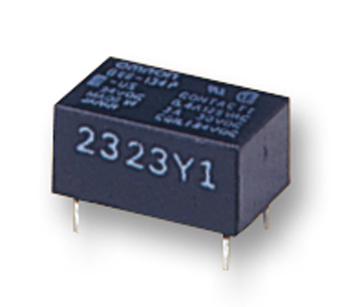

OMRON - G6E-134P-US DC24 - Signal Relay, 24 VDC, SPDT, 2 A, G6E, Through Hole, Non Latching
- Coil Voltage: 24VDC
- Contact Configuration: SPDT
- Contact Current: 2A
- Product Range: G6E Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Relay Terminals: Solder
- Contact Voltage VAC: -
- Contact Voltage VDC: 30V
- Contact Material: Silver
- Coil Resistance: 2.88kohm
- Approval Bodies: CSA
- Approval Category: UL Recognised
- Approvals & Standards: CSA, UL
- Coil Current: 8.3mA
- Coil Power Continuous: 200mW
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 400mA
- Contact Current DC Max: 2A
- Contact Current Max: 3A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Max: 220V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 200mW
- Dielectric Voltage Coil to Contact: 1500VAC
- Dielectric Voltage Contact to Contact: 1000VAC
- External Depth: 16mm
- External Height: 8mm
- External Length / Height: 16mm
- External Width: 10mm
- Insulation Resistance: 1000Mohm
- Insulation Resistance Voltage: 500VDC
- No. of Electrical Operations: 100000
- No. of Mechanical Operations: 100000000
