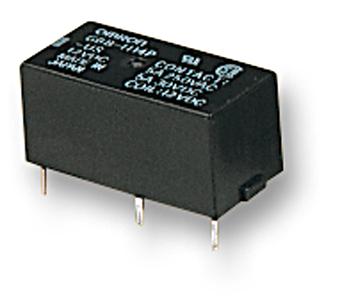

G6B-1114P-US-SV DC24 Relay, SPST, 250VAC, 30Vdc, 5A Omron

OMRONUGS :G6B-1114P-US-SV DC24 Code de commande:1243011

Prix:
Prix ​​promotionnel€15,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1702 unité)

Documents et téléchargements

description

OMRON - G6B-1114P-US-SV DC24 - General Purpose Relay, G6B Series, Power, Non Latching, SPST, 24 VDC, 5 A

  • Contact Configuration: SPST
  • Coil Voltage: 24VDC
  • Contact Current: 5A
  • Product Range: G6B Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 2.88kohm
  • Approval Bodies: CSA, SEV
  • Approval Category: UL Recognised
  • Approvals & Standards: CSA, UL
  • Coil Current: 8.3mA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 160%
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Resistance: 30mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 200mW
  • Dielectric Voltage Coil to Contact: 3000VAC
  • Dielectric Voltage Contact to Contact: 1000VAC
  • External Depth: 10mm
  • External Height: 20mm
  • External Length / Height: 20mm
  • External Width: 10mm
  • Insulation Resistance: 1000Mohm
  • Operating Time: 10ms
