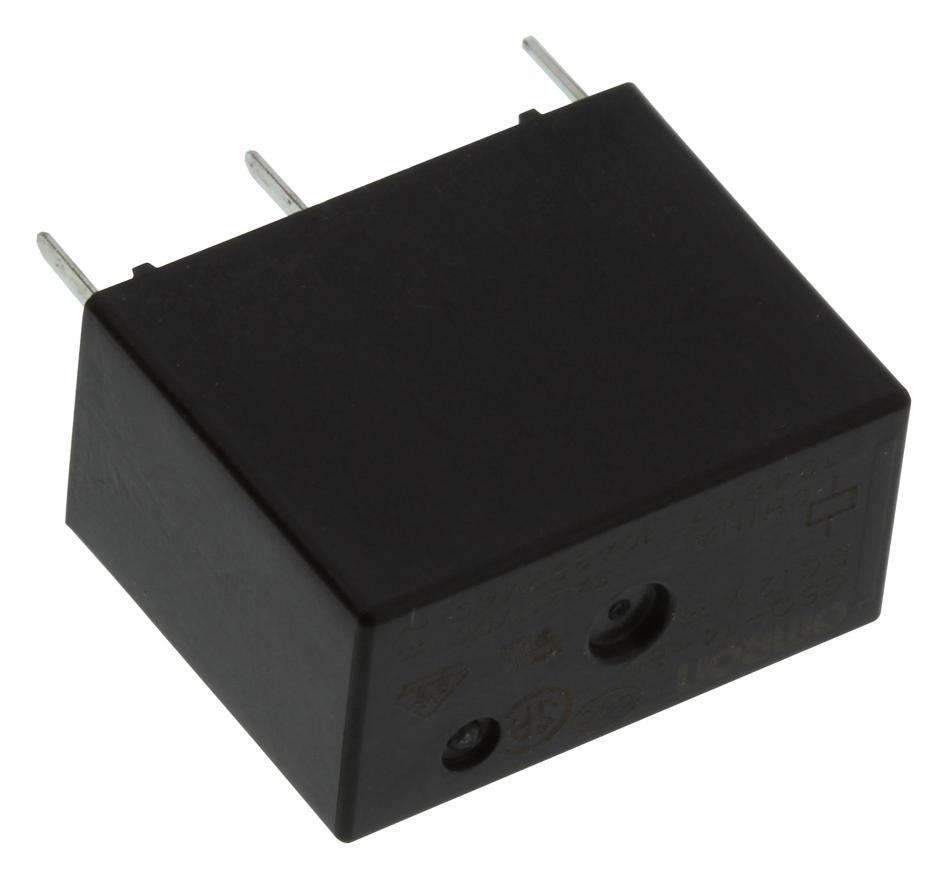

OMRON - G5Q-14EU DC12 - General Purpose Relay, G5Q Series, Power, Non Latching, SPDT, 12 VDC, 10 A
- Contact Configuration: SPDT
- Coil Voltage: 12VDC
- Contact Current: 10A
- Product Range: G5Q Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 360ohm
- Approvals & Standards: CSA, IEC, UL, VDE
- Coil Current: 33.3mA
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 277V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- Current Rating: 33.3mA
- DC Coil Power: 400mW
- Dielectric Strength VDC: 4000VAC
- External Depth: 10.3mm
- External Height: 15.8mm
- External Length / Height: 15.8mm
- External Width: 20.3mm
- Insulation Resistance: 100Mohm
- Mechanical Life: 10,000,000 Operations
- No. of Mechanical Operations: 10000000
- Nom Operating Power: 400mW
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
