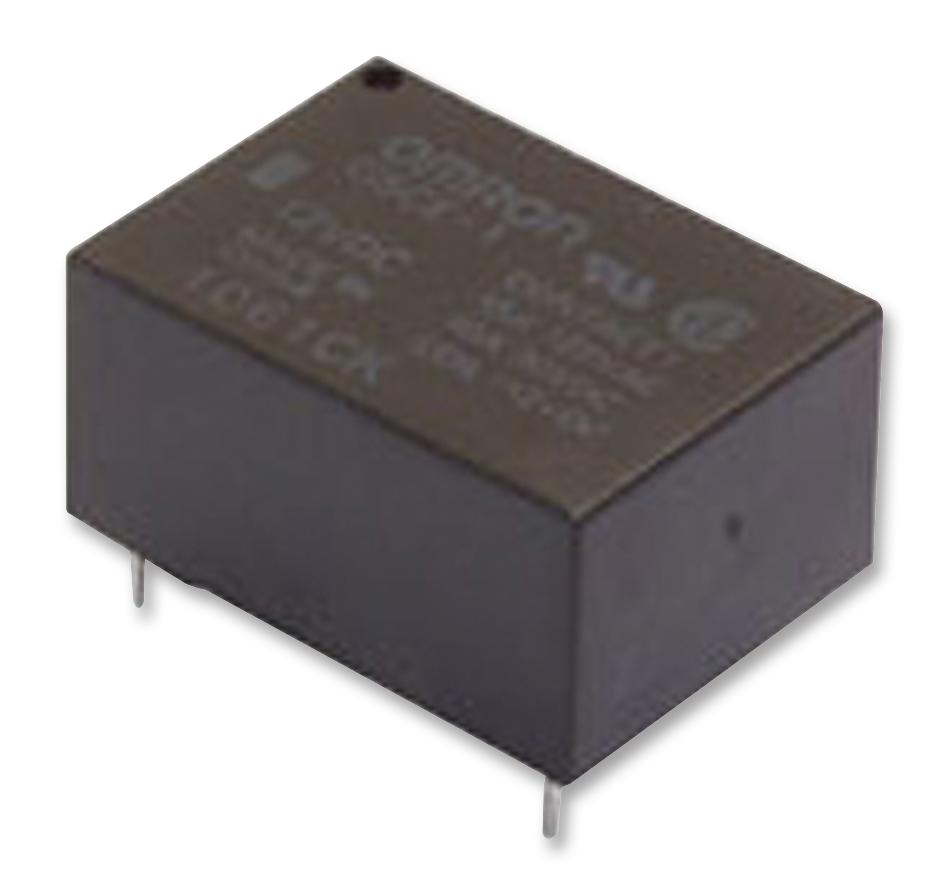

G5CA1A DC24 Relay, SPST-NO, 125VAC, 30Vdc, 15A Omron

OMRONUGS :G5CA1A DC24 Code de commande:2213785

Prix:
Prix ​​promotionnel€8,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (273 unité)

Documents et téléchargements

description

OMRON - G5CA1A DC24 - General Purpose Relay, G5CA Series, Power, Non Latching, SPST-NO, 24 VDC, 15 A

  • Contact Configuration: SPST-NO
  • Coil Voltage: 24VDC
  • Contact Current: 15A
  • Product Range: G5CA Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 125VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 2.88kohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 8.3mA
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 22mm
  • External Height: 11mm
  • External Width: 16mm
  • Nom Operating Power: 200mW
  • Relay Type: Power
