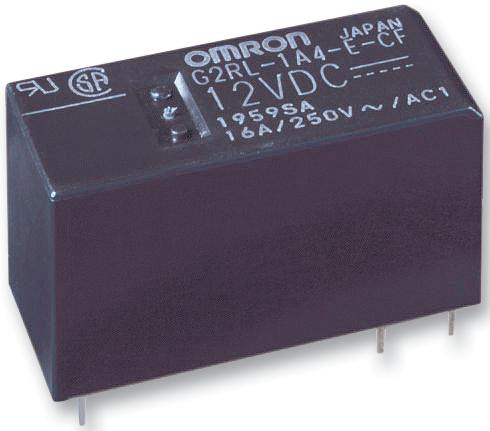

G2RL-1A4-E- DC12 Relay, SPST-NO, 250VAC, 24Vdc, 12A Omron

OMRONUGS :G2RL-1A4-E- DC12 Code de commande:1703728

Prix:
Prix ​​promotionnel€6,76

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (35 unité)

Documents et téléchargements

description

OMRON - G2RL-1A4-E- DC12 - Power Relay, SPST-NO, 12 VDC, 16 A, G2RL, Through Hole, Non Latching

  • Contact Configuration: SPST-NO
  • Coil Voltage: 12VDC
  • Contact Current: 16A
  • Product Range: G2RL Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 24VDC
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 360ohm
  • SVHC: No SVHC (17-Dec-2015)
  • Approvals & Standards: CE, UL, VDE
  • Coil Current: 33.33mA
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 24V
  • External Depth: 29mm
  • External Height: 15.7mm
  • External Width: 12.7mm
  • Nom Operating Power: 400mW
  • Relay Type: Power - General Purpose
