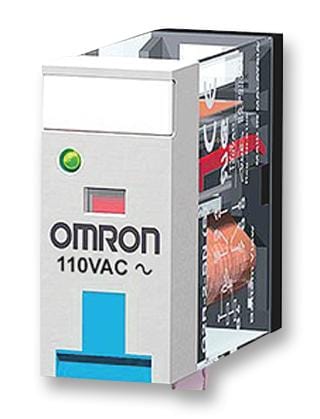

OMRON - G2R-2-SNI 110AC - General Purpose Relay, G2RS Series, Power, Non Latching, DPDT, 110 VAC, 5 A
- Contact Configuration: DPDT
- Coil Voltage: 110VAC
- Contact Current: 5A
- Product Range: G2RS Series
- Relay Mounting: Socket
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Alloy
- Coil Resistance: 5.566kohm
- Approvals & Standards: CE, CSA, IEC, UL, VDE
- Coil Current: 11mA
- Coil Operating Lower Percent Limit: 80%
- Coil Operating Upper Percent Limit: 120%
- Coil Voltage VAC Nom: 110V
- Contact Current AC Max: 5A
- Contact Current DC Max: 5A
- Contact Current Max: 5A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 530mW
- External Depth: 28mm
- External Height: 29mm
- External Length / Height: 29mm
- External Width: 13mm
- Nom Operating Power: 0.9VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Power
- Release Time: 5ms
