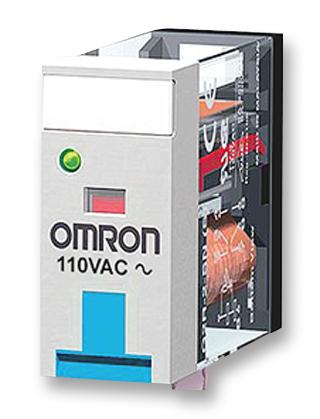

G2R-2-Sn 110AC (S) Relay, DPDT, 250VAC, 30Vdc, 5A Omron

OMRONUGS :G2R-2-SN 110AC (S) Code de commande:4375300

Prix:
Prix ​​promotionnel€22,20

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (50 unité)

Documents et téléchargements

description

OMRON - G2R-2-SN 110AC (S) - General Purpose Relay, G2RS Series, Power, Non Latching, DPDT, 110 VAC, 5 A

  • Contact Configuration: DPDT
  • Coil Voltage: 110V
  • Contact Current: 5A
  • Product Range: G2RS Series
  • Relay Mounting: Socket
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 5.566kohm
  • Approvals & Standards: CE, CSA, IEC, UL, VDE
  • Coil Current: 11mA
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 120%
  • Coil Voltage VAC Nom: 110V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 530mW
  • External Depth: 28mm
  • External Height: 29mm
  • External Length / Height: 29mm
  • External Width: 13mm
  • Nom Operating Power: 0.9VA
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power
  • Release Time: 5ms

Frais de port prévus
