G2R-2 24AC Relay, DPDT, 250VAC, 30Vdc, 5A Omron

OMRONUGS :G2R-2 24AC Code de commande:9949755

Prix:
Prix ​​promotionnel€16,82

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (44 unité)

Documents et téléchargements

description

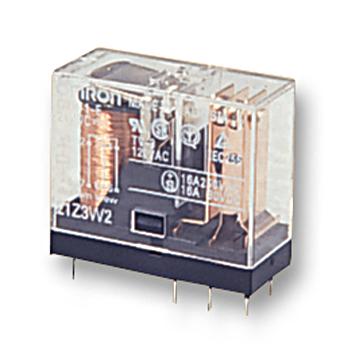

OMRON - G2R-2 24AC - Power Relay, DPDT, 24 VAC, 5 A, G2R, Through Hole, Non Latching

  • Contact Configuration: DPDT
  • Coil Voltage: 24VAC
  • Contact Current: 5A
  • Product Range: G2R Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 260ohm
  • Approval Bodies: CSA, SEMKO, SEV, UL
  • Approvals & Standards: CSA, IEC, UL, VDE
  • Coil Current: 46.5mA
  • Coil Operating Lower Percent Limit: 70%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Voltage VAC Nom: 24V
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 5A
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 240V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 530mW
  • External Depth: 25.5mm
  • External Height: 29mm
  • External Length / Height: 29mm
  • External Width: 13mm
  • Nom Operating Power: 0.9VA
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Operating Time: 15ms
  • Relay Type: Power
  • Release Time: 15ms
