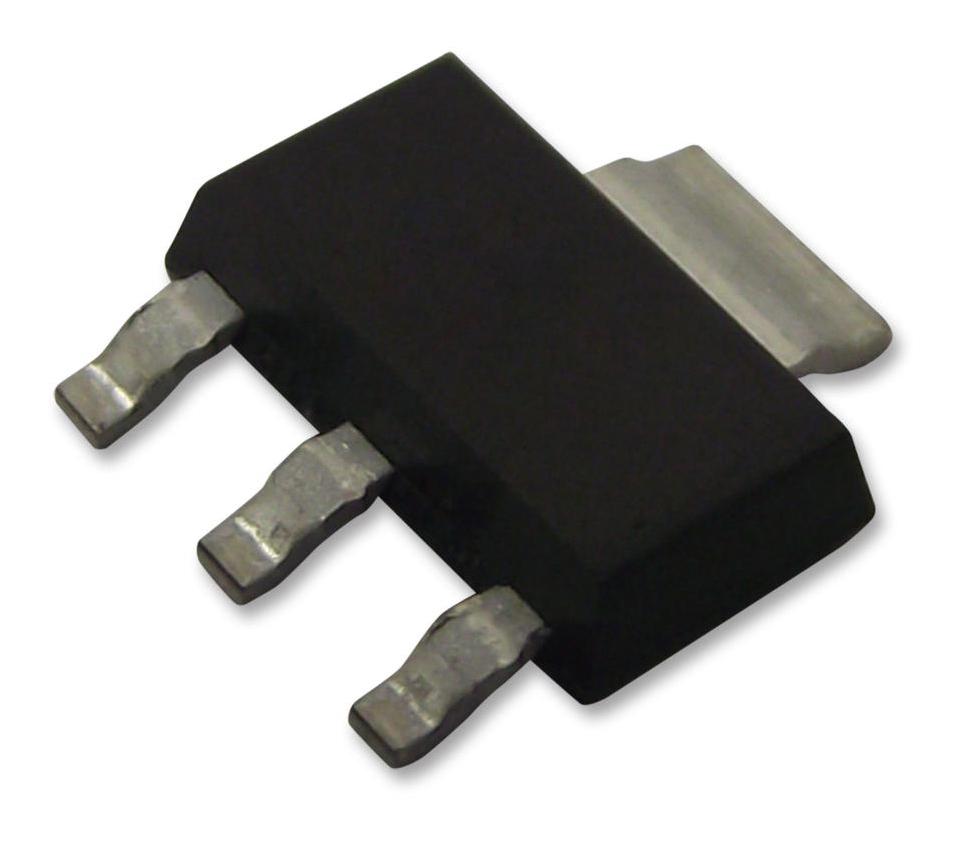

DIODES INC. - FZT603TA - Bipolar (BJT) Single Transistor, Darlington, NPN, 140 V, 2 A, 2 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 140V
- Transition Frequency ft: 150MHz
- Power Dissipation Pd: 2W
- DC Collector Current: 2A
- DC Current Gain hFE: 15000hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Av Current Ic: 2A
- Collector Emitter Saturation Voltage Vce(on): 250mV
- Continuous Collector Current Ic Max: 2A
- Current Ic @ Vce Sat: 3A
- Current Ic Continuous a Max: 2A
- Current Ic hFE: 500mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 150MHz
- Gain Bandwidth ft Typ: 150MHz
- Hfe Min: 5000
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 2W
- Pulsed Current Icm: 6A
- SMD Marking: FZT600
- Termination Type: Surface Mount Device
- Transistor Type: Darlington
- Voltage Vcbo: 160V
