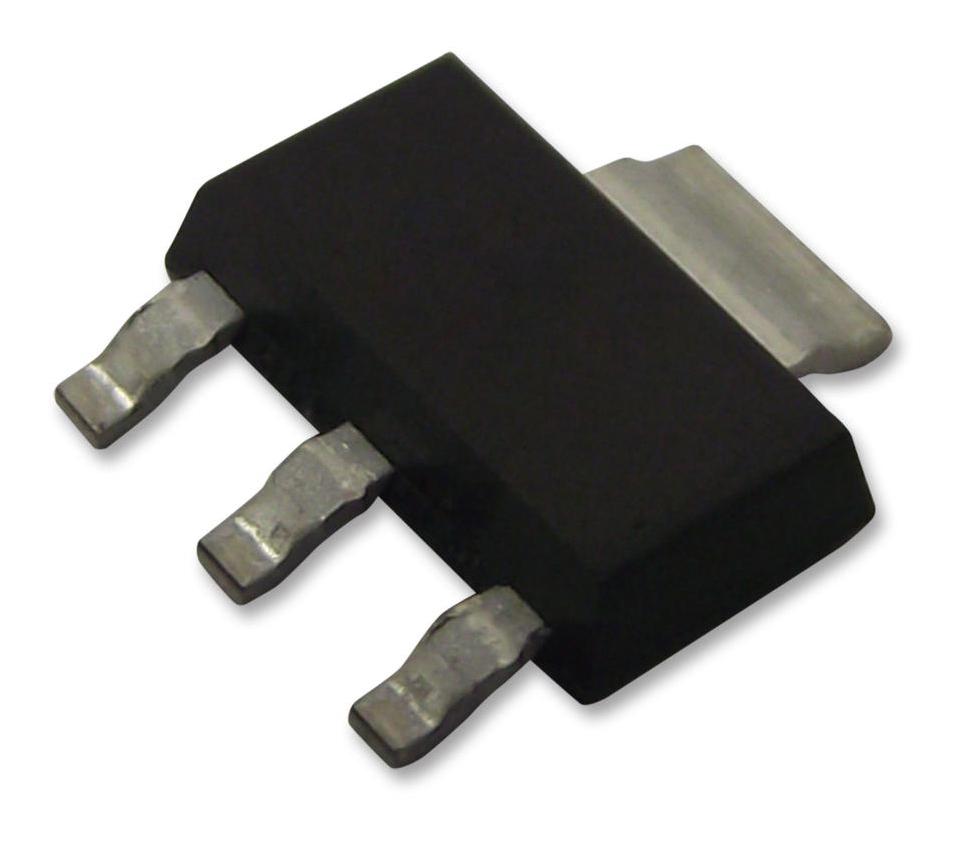

DIODES INC. - FZT1049A - Bipolar (BJT) Single Transistor, NPN, 30 V, 5 A, 2.5 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 30V
- Transition Frequency ft: 180MHz
- Power Dissipation Pd: 2.5W
- DC Collector Current: 5A
- DC Current Gain hFE: 450hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (15-Jan-2019)
- Collector Emitter Saturation Voltage Vce(on): 250mV
- Continuous Collector Current Ic Max: 5A
- Current Ic @ Vce Sat: 5A
- Current Ic Continuous a Max: 5A
- Current Ic hFE: 1A
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 180MHz
- Hfe Min: 300
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 2.5W
- Pulsed Current Icm: 20A
- SMD Marking: FZT1049A
- Voltage Vcbo: 80V
