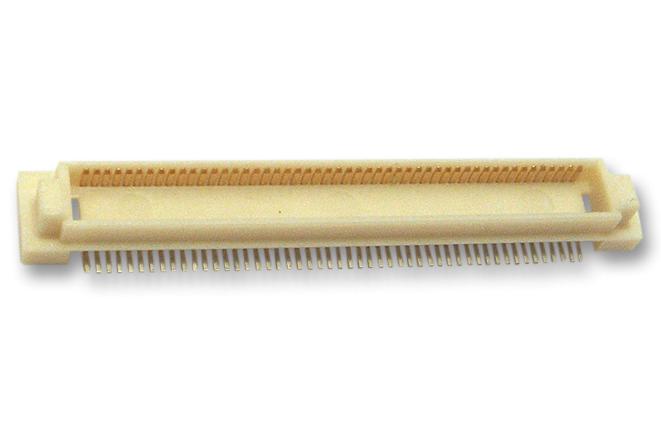

HIROSE(HRS) - FX8C-60P-SV1(91) - Mezzanine Connector, 0.6mm Height, Header, 0.6 mm, 2 Rows, 60 Contacts, Surface Mount
- Product Range: FX8C Series
- No. of Contacts: 60Contacts
- Gender: Header
- Pitch Spacing: 0.6mm
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Row Pitch: -
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 80mohm
- Contact Termination: Solder
- Current Rating: 0.4A
- External Depth: 6.5mm
- External Length / Height: 5.45mm
- External Width: 24.6mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 0.6mm
- No. of Mating Cycles: 50
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 100V
- Withstand Voltage: 300VAC
