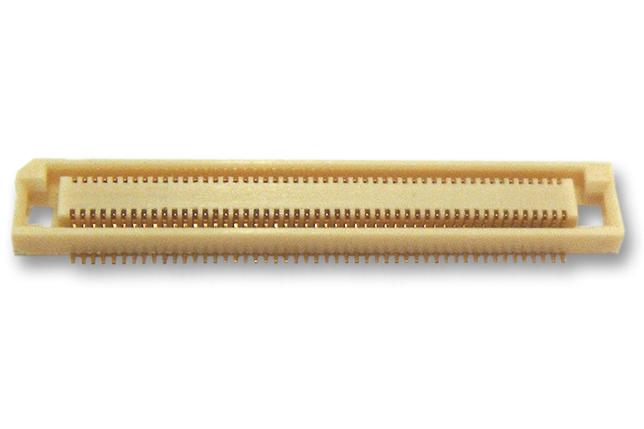

HIROSE(HRS) - FX8-80S-SV(21) - Mezzanine Connector, 0.6mm Height, Receptacle, 0.6 mm, 2 Rows, 80 Contacts, Surface Mount
- Product Range: FX8 Series
- No. of Contacts: 80Contacts
- Gender: Receptacle
- Pitch Spacing: 0.6mm
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Row Pitch: -
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 45mohm
- Contact Termination: Solder
- Current Rating: 0.4A
- External Depth: 7mm
- External Length / Height: 2.25mm
- External Width: 30.6mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- Lead Spacing: 0.6mm
- No. of Mating Cycles: 50
- Operating Temperature Max: 85°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 100V
- Withstand Voltage: 300VAC
