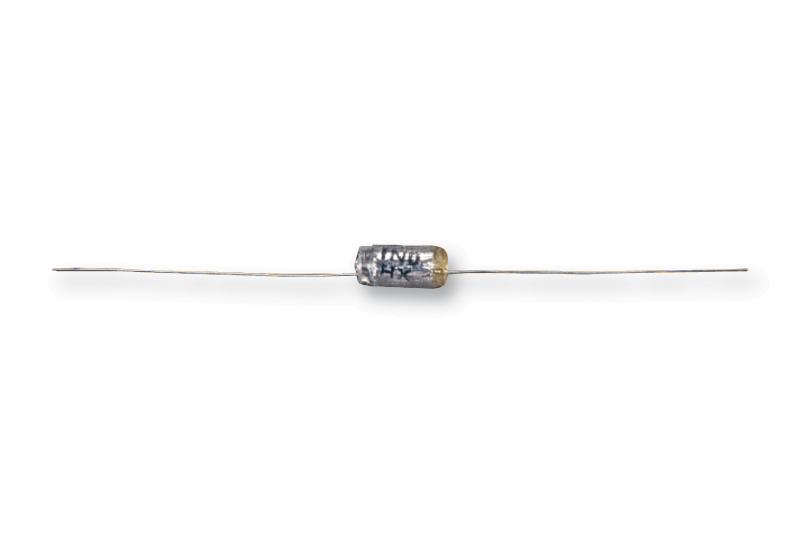

LCR COMPONENTS - FSC 160V 4700PF - General Purpose Film Capacitor, Film / Foil PS, Axial Leaded, 4700 pF, ± 2.5%, 160 V
- Capacitance: 4700pF
- Voltage Rating: 160V
- Capacitor Dielectric Type: PS (Polystyrene)
- Capacitance Tolerance: ± 2.5%
- Product Range: FSC Series
- Capacitor Case Style: -
- Capacitor Terminals: Axial Leaded
- Lead Spacing: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 9.5mm
- Capacitance Tolerance ±: ± 2.5%
- Capacitor Application: Audio
- Capacitor Mounting: Through Hole
- Climatic Category: 40/85/56
- External Length / Height: 15mm
- Height: 15mm
- Insulation Resistance: 500000Mohm
- Lead Diameter: 0.6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Power Factor: 0.0005
- Power Factor Frequency: 1kHz
- Temperature Coeff. +: -150ppm/°C
- Temperature Coeff. -: -200ppm/°C
- Temperature Coefficient: -150ppm/°C to -200ppm/°C
- Tolerance +: 2.5%
- Tolerance -: 2.5%
- Voltage Rating V DC: 160V
- Voltage Rating VAC: 40V
