Condensatoren
FSC 160V 22PF+/-1PF CAP, 22PF, 160V, PS LCR COMPONENTS
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
FSC 160V 22PF+/-1PF CAP, 22PF, 160V, PS LCR COMPONENTS

FSC 160V 22PF+/-1pF Cap, 22PF, 160V, PS LCR Components

LCR COMPONENTSUGS :FSC 160V 22PF+/-1PF Code de commande:9519971
Prix:
€5,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2071 unité)

Documents et téléchargements

Fiche Technique - FR

description

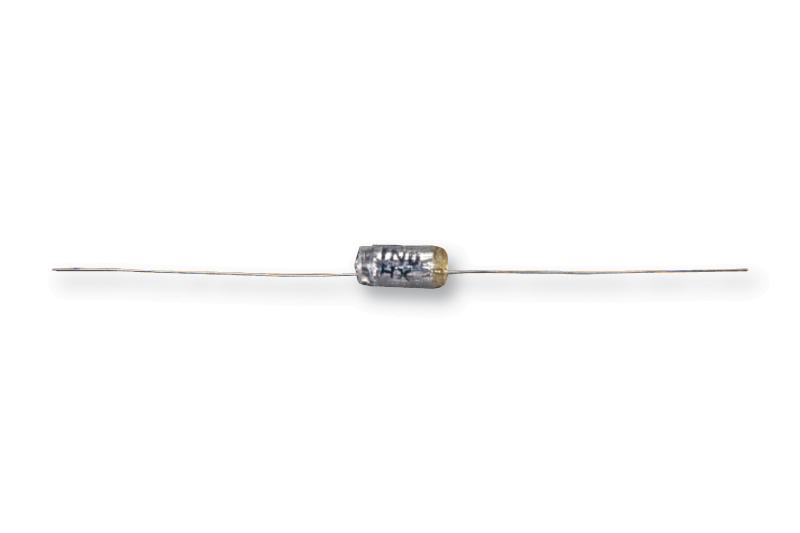

LCR COMPONENTS - FSC 160V 22PF+/-1PF - General Purpose Film Capacitor, Film / Foil PS, Axial Leaded, 22 pF, ± 1pF, 160 V

  • Capacitance: 22pF
  • Voltage Rating: 160V
  • Capacitor Dielectric Type: PS (Polystyrene)
  • Capacitance Tolerance: ± 1pF
  • Product Range: FSC Series
  • Capacitor Case Style: -
  • Capacitor Terminals: Axial Leaded
  • Lead Spacing: -
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 4mm
  • Capacitance Tolerance ±: ± 1pF
  • Capacitor Application: Audio
  • Capacitor Mounting: Through Hole
  • Climatic Category: 40/85/56
  • External Length / Height: 8mm
  • Insulation Resistance: 500000Mohm
  • Lead Diameter: 0.4mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Power Factor: 0.0005
  • Power Factor Frequency: 1kHz
  • Temperature Coeff. +: -150ppm/°C
  • Temperature Coeff. -: -200ppm/°C
  • Temperature Coefficient: -150ppm/°C to -200ppm/°C
  • Tolerance +: 4.54%
  • Tolerance -: 4.54%
  • Voltage Rating V DC: 160V
  • Voltage Rating VAC: 40V
