FP005 ARC Suppression, 0.01-0.1uF, 47-470R LCR Components

LCR COMPONENTSUGS :FP005 Code de commande:9520848

Prix:
Prix ​​promotionnel€15,30

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (9 unité)

Documenten en downloads

description

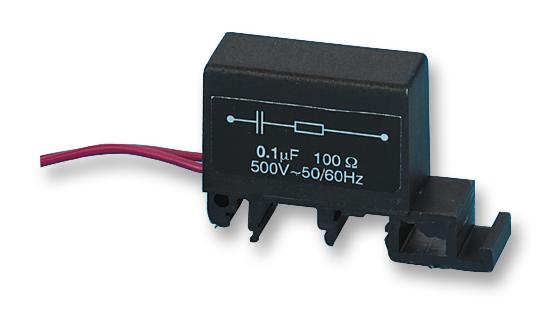

LCR COMPONENTS - FP005 - Surge Protector, Mains

  • Product Range: -
  • Suppressor Type: Mains
  • No. of Outlets: -
  • Outlet Type: -
  • Voltage Rating: 500Vrms
  • Output Current: -
  • Peak Surge Current: -
  • Response Time: -
  • SVHC: No SVHC (15-Jan-2019)
  • AC Power: 4W
  • Capacitance: 0.1µF
  • Capacitance Tolerance: ± 20%
  • Capacitance Tolerance +: 10%
  • Capacitance Tolerance -: -10%
  • Connector Type: Wire Leaded
  • Control Voltage AC Max: 500V
  • External Depth: 40mm
  • External Length / Height: 43mm
  • External Width: 19mm
  • Insulation Resistance: 100Mohm
  • No. of Phases: Single Phase
  • Nom Operating Voltage: 500V
  • Operating Frequency Max: 60Hz
  • Operating Frequency Min: 50Hz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Resistance: 470ohm
  • Resistance Tolerance: ± 5%
  • Resistance Tolerance +: 5%
  • Resistance Tolerance -: 5%
  • Resistor Power Rating: 4W
  • Standard: BS5584, BS5825
  • Voltage Rating VAC: 500V
