FN284B-6-06 Filter, Inlet, Medical, Dual Fuse, 6a Schaffner

SCHAFFNERUGS :FN284B-6-06 Code de commande:2336602

Prix:
Prix ​​promotionnel€40,43

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (64 unité)

Documents et téléchargements

description

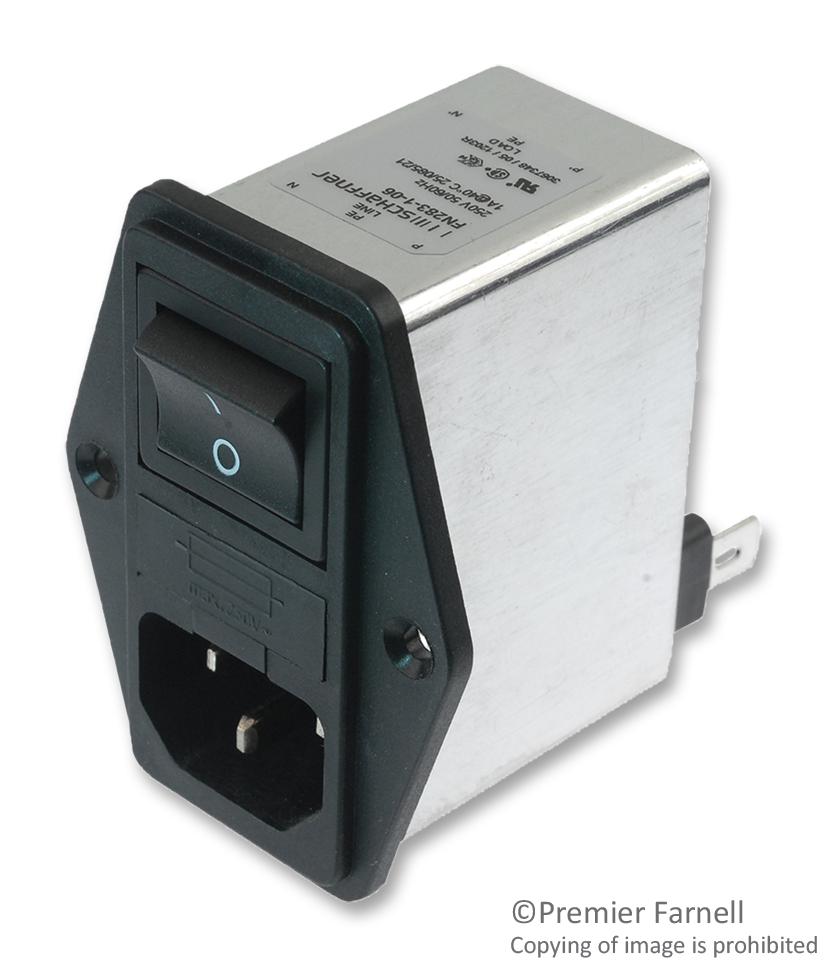

SCHAFFNER - FN284B-6-06 - Filtered IEC Power Entry Module, IEC C14, Medical, 6 A, 250 VAC, 2-Pole Switch

  • Product Range: FN 280 Series
  • Gender: Plug
  • Voltage Rating: 250VAC
  • Current Rating: 6A
  • Connector Mounting: Panel Mount
  • Contact Termination Type: Solder
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance: 220nF
  • Contact Termination: Solder
  • External Depth: 43.6mm
  • External Length / Height: 65mm
  • External Width: 32mm
  • Filter Terminals: Quick Connect
  • Filter Type: IEC, Mains
  • Inductance Min: 1mH
  • Leakage Current Max: 2µA
  • No. of Fuses: 2Fuses
  • Panel Cutout Depth: 60mm
  • Panel Cutout Width: 29mm
