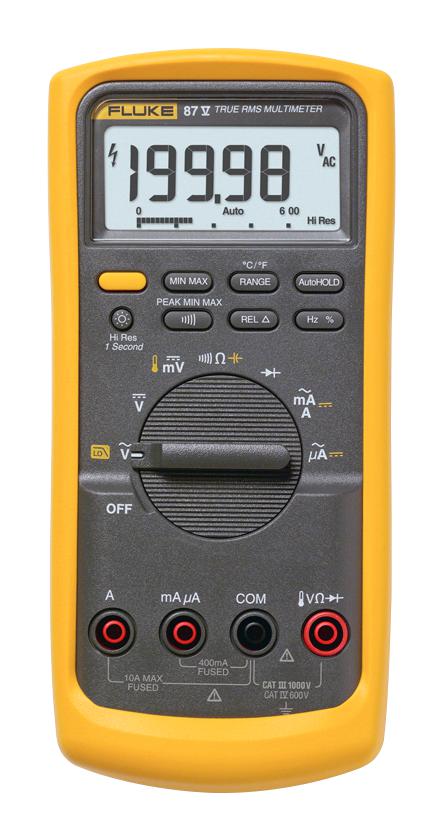

FLUKE - FLUKE 87-V/EUR - Digital Multimeter Kit, 80 Series V, 20000 Count, True RMS, Auto, Manual Range, 4.5 Digit
- DMM Functions: Current, Voltage, Capacitance, Frequency, Resistance, Temperature
- Current Measure AC Max: 10A
- Current Measure DC Max: 10A
- Voltage Measure AC Max: 1kV
- Voltage Measure DC Max: 1kV
- Resistance Measure Max: 50Mohm
- DMM Response Type: True RMS
- Display Count: 20000
- No. of Digits: 4.5
- Range Selection: Auto, Manual
- Manufacturer Warranty: Lifetime Warranty
- Product Range: 80 Series V
- SVHC: No SVHC (15-Jun-2015)
- AC Current Range Accuracy: (1.0%+2)
- AC Voltage Range Accuracy: (0.7%+2)
- Capacitance Measuring Range Resolution: 0.01 nF
- Capacitance Range Accuracy: (1.0%+2)
- Conductance Measuring Range Accuracy: 1%
- Conductance Measuring Ranges: 60 nS
- Current Measuring Range AC: 0A to 10A
- Current Measuring Range DC: 0A to 10A
- Current Measuring Range Resolution AC: 0.01 uA
- Current Measuring Range Resolution DC: 0.01 uA
- DC Current Range Accuracy: (0.2%+2)
- DC Voltage Range Accuracy: 0.05% + 1 Digit
- DMM Type: Hand Held
- External Width: 98mm
- Humidity Measuring Ranges: 0% - 90%
