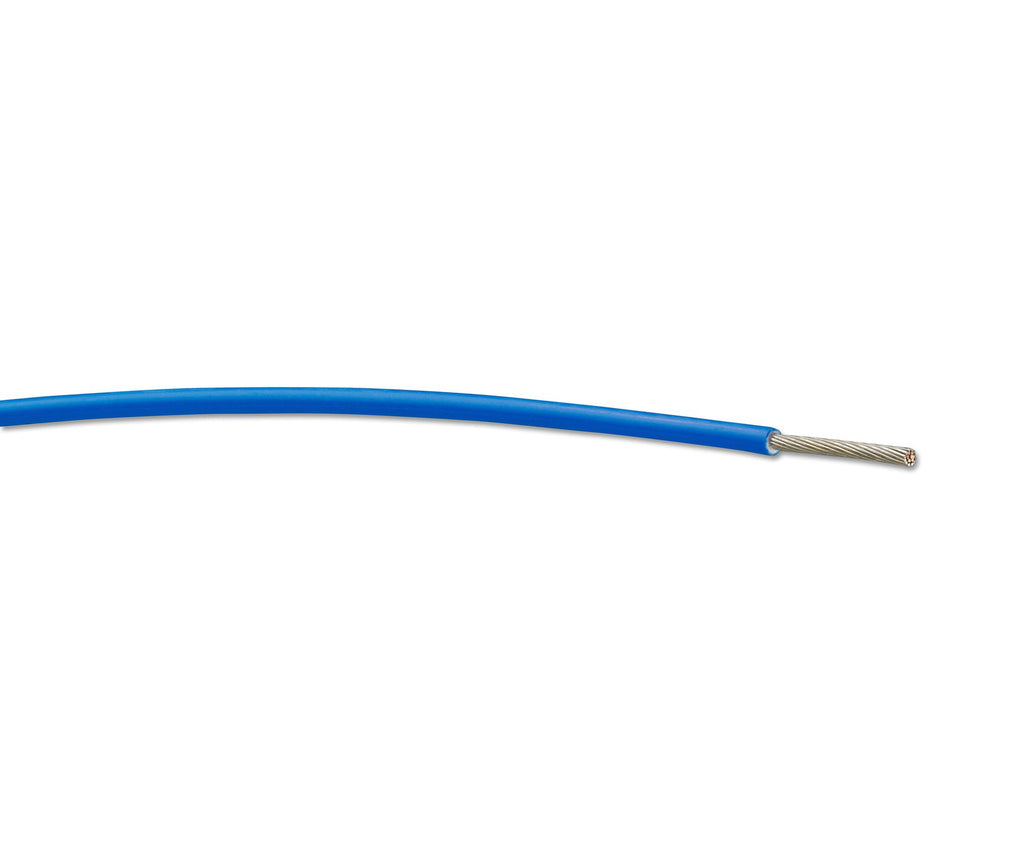

RAYCHEM - TE CONNECTIVITY - FLDWC0311-0.35-6 - Wire, Stranded, Hook Up, Flexlite™, PVDF, Blue, 0.35 mm², 328 ft, 100 m
- Jacket Material: PVDF
- Jacket Colour: Blue
- Wire Gauge: -
- Conductor Area CSA: 0.35mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- No. of Max Strands x Strand Size: 19 x 0.15mm
- Voltage Rating: 600V
- Conductor Material: Tinned Copper
- External Diameter: 1.42mm
- Approval Specification: -
- Product Range: -
- Approval Category: UL 3584
- Cable Diameter Max: 1.42mm
- Cable Diameter Min: 1.31mm
- Cable UL Style Number: UL3584
- Conductor Diameter Max: 0.77mm
- Conductor Diameter Min: 0.72mm
- Conductor Make-up: 19 / 0.15mm
- Flammability Rating: UL94V-1
- Operating Temperature Max: 125°C
- Operating Temperature Min: -45°C
- Outer Diameter: 1.37mm
- Primary Conductor Resistance: 56.1ohm/km
- Secondary Insulation Colour: Blue
- Secondary Insulation Material: Radiation Crosslinked Modified PVF2
- Voltage Rating VAC: 600V
