FLDWC0311-0.25-6 Wire, Blue, 0.25mm, 100m Raychem - Te Connectivity

RAYCHEM - TE CONNECTIVITYUGS :FLDWC0311-0.25-6 Code de commande:798022

Prix:
Prix ​​promotionnel€142,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (55 unité)

Documents et téléchargements

description

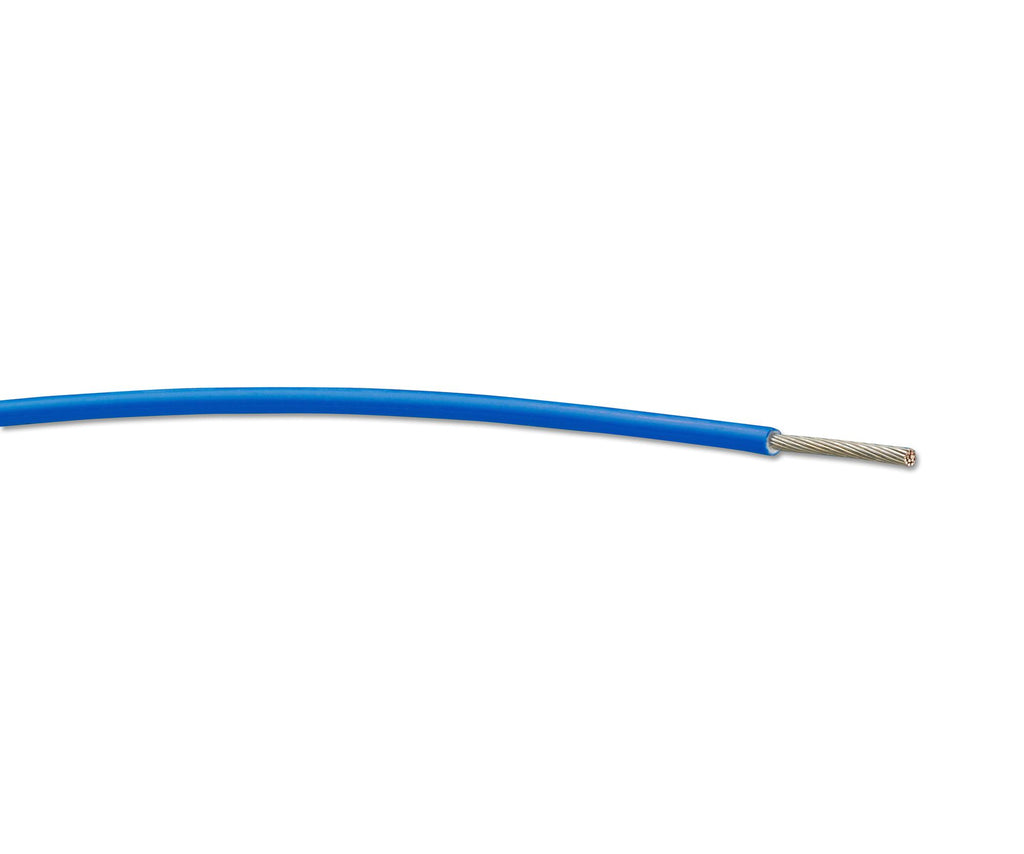

RAYCHEM - TE CONNECTIVITY - FLDWC0311-0.25-6 - Wire, Stranded, Hook Up, Flexlite™, PVDF, Blue, 0.25 mm², 328 ft, 100 m

  • Jacket Material: PVDF
  • Jacket Colour: Blue
  • Wire Gauge: -
  • Conductor Area CSA: 0.25mm²
  • Reel Length (Imperial): 328ft
  • Reel Length (Metric): 100m
  • No. of Max Strands x Strand Size: 19 x 0.127mm
  • Voltage Rating: 600V
  • Conductor Material: Tinned Copper
  • External Diameter: 1.22mm
  • Approval Specification: -
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Approval Category: UL 3584
  • Cable Diameter Max: 1.22mm
  • Cable Diameter Min: 1.12mm
  • Cable UL Style Number: UL3584
  • Conductor Diameter Max: 0.63mm
  • Conductor Diameter Min: 0.55mm
  • Conductor Make-up: 19 / 0.127mm
  • Flammability Rating: UL94V-1
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -45°C
  • Outer Diameter: 1.17mm
  • Primary Conductor Resistance: 83.6ohm/km
  • Secondary Insulation Colour: Blue
  • Secondary Insulation Material: Radiation Crosslinked Modified PVF2
  • Voltage Rating VAC: 600V
