description

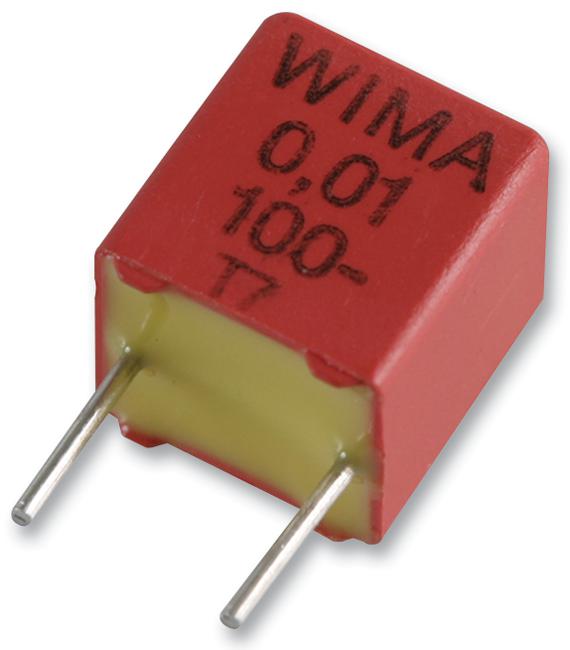

WIMA - FKP2D012201D00JSSD - General Purpose Film Capacitor, Film / Foil PP, Radial Box - 2 Pin, 2200 pF, ± 5%, 63 V, 100 V
- Capacitance: 2200pF
- Voltage Rating: 100V
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 5%
- Product Range: FKP2 Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 5mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 5%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/85/56
- External Depth: 4.5mm
- External Length / Height: 6mm
- External Width: 7.2mm
- Height: 6mm
- Insulation Resistance: 50000Mohm
- Lead Diameter: 0.5mm
- Lead Length: 6mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +85°C
- Power Factor: 0.0004
- Power Factor Frequency: 1kHz
- Power Factor Temperature: 20°C
- Resistance Insulation Temperature: 20°C
- Temperature Coeff. -: -200ppm/°C
- Temperature Coefficient: -200ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 100V
- Voltage Rating VAC: 63V
