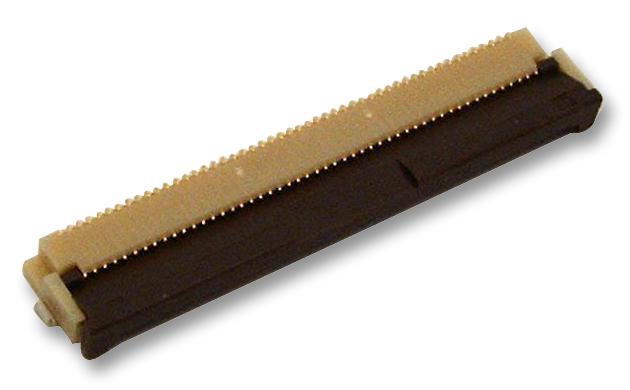

FH12S-30S-0.5SH(55) Socket FFC/FPC, ZIF, 0.5mm, 30WAY Hirose(Hrs)

HIROSE(HRS)UGS :FH12S-30S-0.5SH(55) Code de commande:1324587

Prix:
Prix ​​promotionnel€4,71

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1798 unité)

Documenten en downloads

description

HIROSE(HRS) - FH12S-30S-0.5SH(55) - FFC / FPC Board Connector, ZIF, 0.5 mm, 30 Contacts, Receptacle, FH12, Surface Mount, Bottom

  • Pitch Spacing: 0.5mm
  • No. of Contacts: 30Contacts
  • Gender: Receptacle
  • Product Range: FH12 Series
  • Contact Termination Type: Surface Mount
  • Contact Position: Bottom
  • No. of Rows: 1 Row
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • FFC/FPC Thickness: 0.3mm
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Beige/Dark Brown
  • Contact Resistance: 50mohm
  • Contact Termination: Surface Mount Right Angle
  • Current Rating: 0.4A
  • External Depth: 6.4mm
  • External Length / Height: 2.4mm
  • External Width: 19.1mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 500Mohm
  • Lead Spacing: 0.5mm
  • Material: Polyamide
  • No. of Mating Cycles: 20
  • No. of Rows: 1Rows
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 150V
