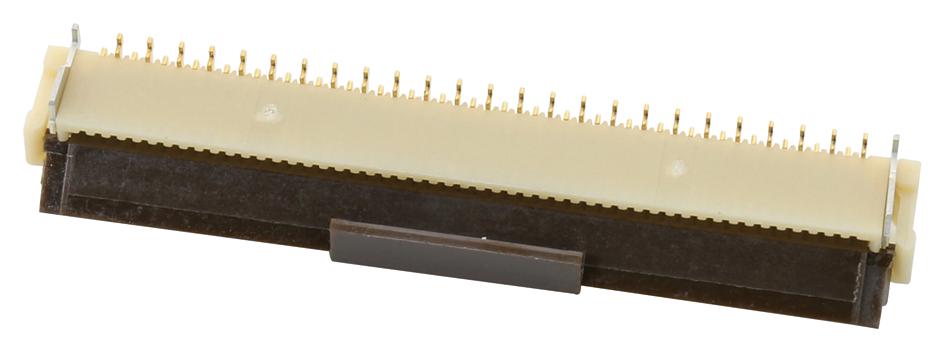

FH12-50S-0.5SVA(54) Connector, FFC/FPC, ZIF, 50Pos, 0.5mm Hirose(Hrs)

HIROSE(HRS)UGS :FH12-50S-0.5SVA(54) Code de commande:2564808

Prix:
Prix ​​promotionnel€5,46

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (606 unité)

Documents et téléchargements

description

HIROSE(HRS) - FH12-50S-0.5SVA(54) - FFC / FPC Board Connector, ZIF, Flip Lock, 0.5 mm, 50 Contacts, Receptacle, FH12, Surface Mount

  • Pitch Spacing: 0.5mm
  • No. of Contacts: 50Contacts
  • Gender: Receptacle
  • Product Range: FH12 Series
  • Contact Termination Type: Surface Mount
  • Contact Position: -
  • No. of Rows: 1 Row
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • FFC/FPC Thickness: 0.3mm
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Beige/Dark Brown
  • Contact Resistance: 50mohm
  • Contact Termination: Surface Mount Vertical
  • Current Rating: 0.4A
  • External Depth: 4.75mm
  • External Length / Height: 4.85mm
  • External Width: 28.4mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 500Mohm
  • Lead Spacing: 0.5mm
  • Material: Polyamide
  • No. of Mating Cycles: 20
  • No. of Rows: 1Rows
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 150V
