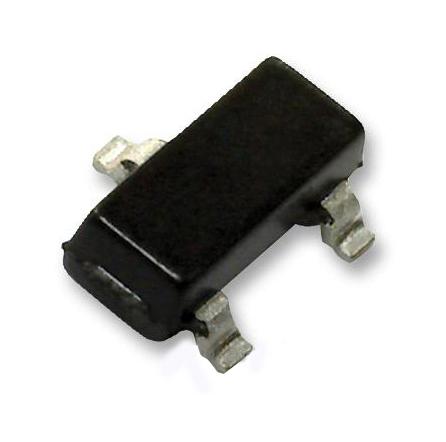

ONSEMI - FDN304P - Power MOSFET, P Channel, 20 V, 2.4 A, 0.052 ohm, SuperSOT, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -2.4A
- Drain Source Voltage Vds: -20V
- On Resistance Rds(on): 0.052ohm
- Rds(on) Test Voltage Vgs: -4.5V
- Threshold Voltage Vgs: -800mV
- Power Dissipation Pd: 500mW
- Transistor Case Style: SuperSOT
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Temperature: 25°C
- Device Marking: FDN304P
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Full Power Rating Temperature: 25°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 10A
- SMD Marking: 304P
- Tape Width: 8mm
- Voltage Vgs Max: 8V
- Voltage Vgs Rds on Measurement: -4.5V
- Voltage Vgs th Max: -1.5V
