FDMC2523P MOSFET, P, SUPER33 ONSEMI

ONSEMIUGS :FDMC2523P Code de commande:1324795

Prix:
Prix ​​promotionnel€2,89

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (290 unité)

Documenten en downloads

description

ONSEMI - FDMC2523P - Power MOSFET, P Channel, 150 V, 3 A, 1.5 ohm, Power 33, Surface Mount

  • Transistor Polarity: P Channel
  • Continuous Drain Current Id: 3A
  • Drain Source Voltage Vds: -150V
  • On Resistance Rds(on): 1.5ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3.8V
  • Power Dissipation Pd: 42W
  • Transistor Case Style: Power 33
  • No. of Pins: 8Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitance Ciss Typ: 200pF
  • Current Id Max: 3A
  • On State Resistance Max: 1.5ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C

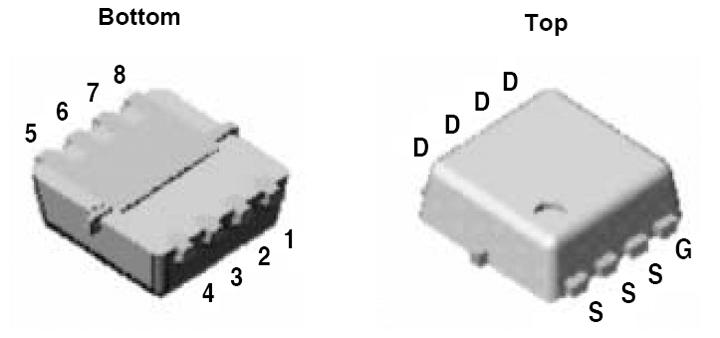

  • Pin Configuration: D(5,6,7,8), G(4), S(1,2,3)
  • Pulse Current Idm: 12A
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: -150V
  • Voltage Vgs Max: 30V
  • Voltage Vgs Rds on Measurement: -10V
  • Voltage Vgs th Max: -5V
  • Voltage Vgs th Min: -3V
