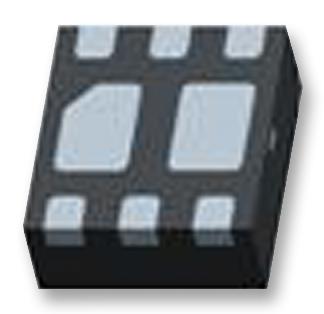

ONSEMI - FDMA1028NZ - Dual MOSFET, N Channel, 20 V, 3.7 A, 0.068 ohm, µFET, Surface Mount
- Transistor Polarity: Dual N Channel
- Continuous Drain Current Id: 3.7A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 0.068ohm
- Rds(on) Test Voltage Vgs: 1V
- Threshold Voltage Vgs: 1V
- Power Dissipation Pd: 1.4W
- Transistor Case Style: µFET
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 3.7A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -55°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Pulse Current Idm: 6A
- SMD Marking: 028
- Termination Type: Surface Mount Device
- Voltage Vds: 20V
- Voltage Vds Typ: 20V
- Voltage Vgs Max: 12V
- Voltage Vgs Rds on Measurement: 4.5V
- Voltage Vgs th Max: 1.5V
