description

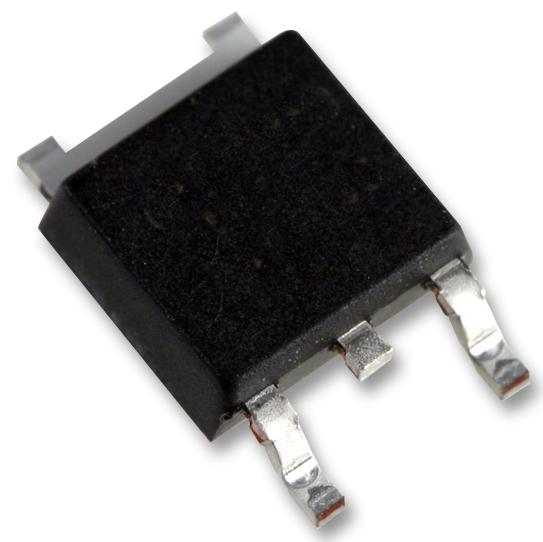

ONSEMI - FDD8445 - Power MOSFET, N Channel, 40 V, 15.2 A, 0.0067 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 15.2A
- Drain Source Voltage Vds: 40V
- On Resistance Rds(on): 0.0067ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 2.8V
- Power Dissipation Pd: 79W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: Lead (27-Jun-2018)
- Alternate Case Style: TO-252
- Application Code: GP
- Current Id Max: 70A
- Current Temperature: 25°C
- External Depth: 10.5mm
- External Length / Height: 2.55mm
- External Width: 6.8mm
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 1.9°C/W
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pulse Current Idm: 85A
- Reverse Recovery Time trr Typ: 39ns
- SMD Marking: FDD8445
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 40V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
- Voltage Vgs th Min: 2V
