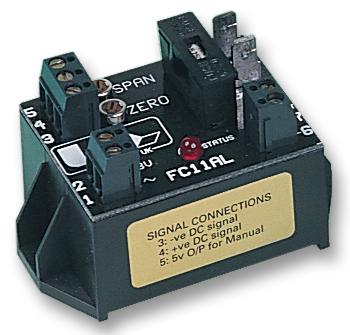

UNITED AUTOMATION - FC11AL - Trigger Module, Phase Angle, 18 V
- Supply Voltage: 18V
- Operating Temperature Min: 0°C
- Operating Temperature Max: 65°C
- Product Range: -
- SVHC: No SVHC (20-Jun-2016)
- Approval Bodies: CE
- External Depth: 44mm
- External Length / Height: 73mm
- For Use With: AC Resistive or Inductive Loads, Half-wave Vibrator Control
- Gate Trigger Current Max, Igt: 0.8A
- Input Current Max: 65mA
- Input Impedance: 5kohm
- Input Voltage Max: 25V
- Input Voltage Min: 0V
- Isolation Voltage: 5000V
- Operating Temperature Range: 0°C to +65°C
- Output Current Max: 5mA
- Output Voltage: 5V
- Output Voltage Max: 550V
- Output Voltage Min: 110V
- RMS Current (Irms): 65mA
- Rate of Voltage Change dv / dt: 100V/µs
- Supply Voltage AC Max: 20.7V
- Supply Voltage AC Min: 15.3V
- Supply Voltage Max: 550V
- Supply Voltage Min: 110V
