description

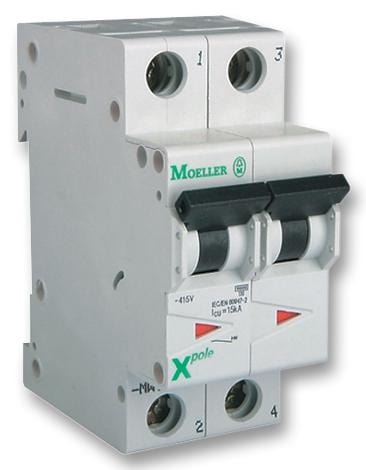

EATON MOELLER - FAZ-C4/2 - Thermal Magnetic Circuit Breaker, FAZ, 4 A, 2 Pole, 48 VDC, 415 VAC, DIN Rail
- Product Range: FAZ Series
- Current Rating: 4A
- No. of Poles: 2 Pole
- Voltage Rating V DC: 48VDC
- Voltage Rating VAC: 415VAC
- Circuit Breaker Mounting: DIN Rail
- SVHC: No SVHC (17-Dec-2015)
- Breaking Capacity Current AC: 15kA
- Cross-section Area Max: 25mm²
- External Depth: 71mm
- External Length / Height: 80mm
- External Width: 35mm
- IP / NEMA Rating: IP20
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 10000
- Tripping Characteristic: C
