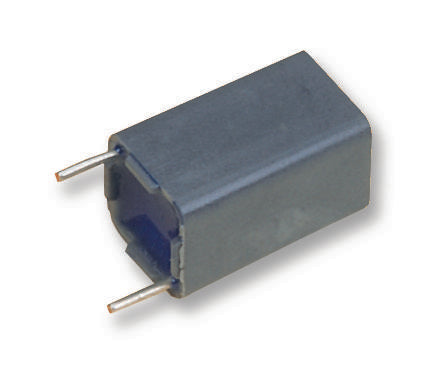

LCR COMPONENTS - EXFS/HR 2200PF +/- 1% - Power Film Capacitor, Film / Foil PS, Radial Box - 2 Pin, 2200 pF, ± 1%, Telecommunication
- Capacitance: 2200pF
- Voltage Rating: 63V
- Capacitor Dielectric Type: PS (Polystyrene)
- Capacitance Tolerance: ± 1%
- Product Range: EXFS/HR Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 5.08mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 70°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 1%
- Capacitor Mounting: Through Hole
- Climatic Category: 40/70/56
- External Length / Height: 13mm
- Insulation Resistance: 500000Mohm
- Lead Diameter: 0.6mm
- Lead Length: 4mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +70°C
- Power Factor: 0.0005
- Power Factor Frequency: 1kHz
- Temperature Coeff. +: -110ppm/°C
- Temperature Coeff. -: -170ppm/°C
- Temperature Coefficient: -110ppm/°C to -170ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 63V
- Voltage Rating VAC: 40V
