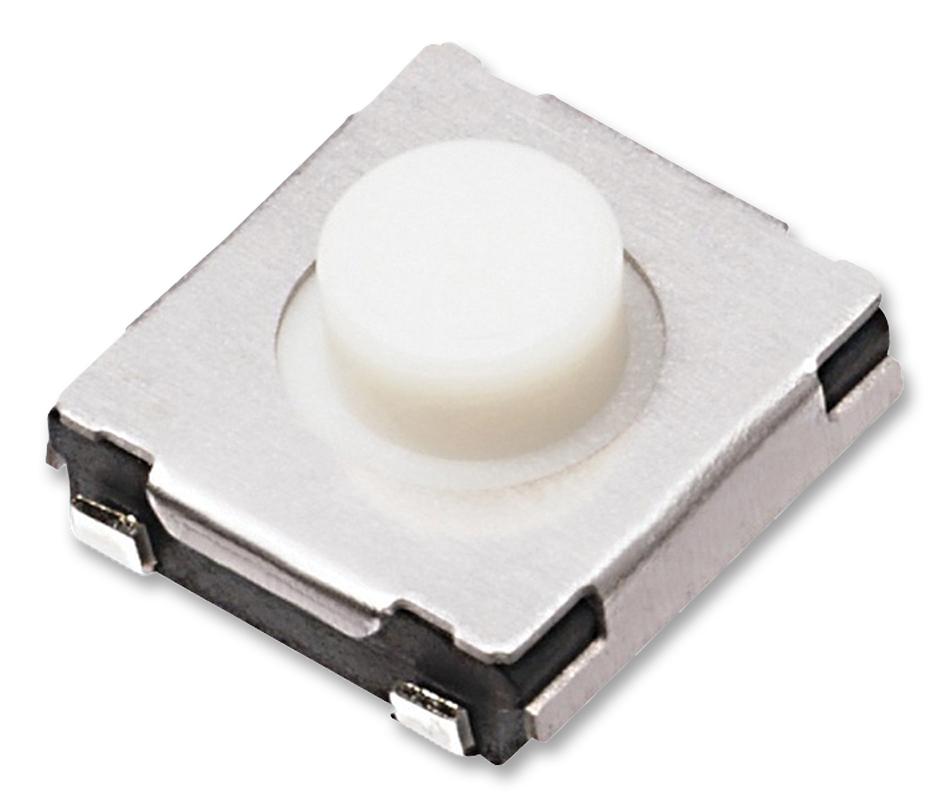

PANASONIC - EVQQ2D03W - Tactile Switch, EVQQ2, Top Actuated, Surface Mount, Round Button, 50 gf, 20mA at 15VDC
- Product Range: EVQQ2 Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Round Button
- Actuating Force: 50gf
- Contact Rating: 20mA at 15VDC
- Switch Dimensions (L x W): 6.5mm x 6mm
- IP Rating: -
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Top
- Body Depth: 6mm
- Body Width: 6.5mm
- Contact Configuration: SPST
- Contact Current Max: 20mA
- Contact Voltage DC Nom: 15V
- External Length / Height: 3.1mm
- Height: 3.1mm
- No. of Mechanical Operations: 2000000
- Operating Force: 0.5N
- Switch Terminals: Solder
