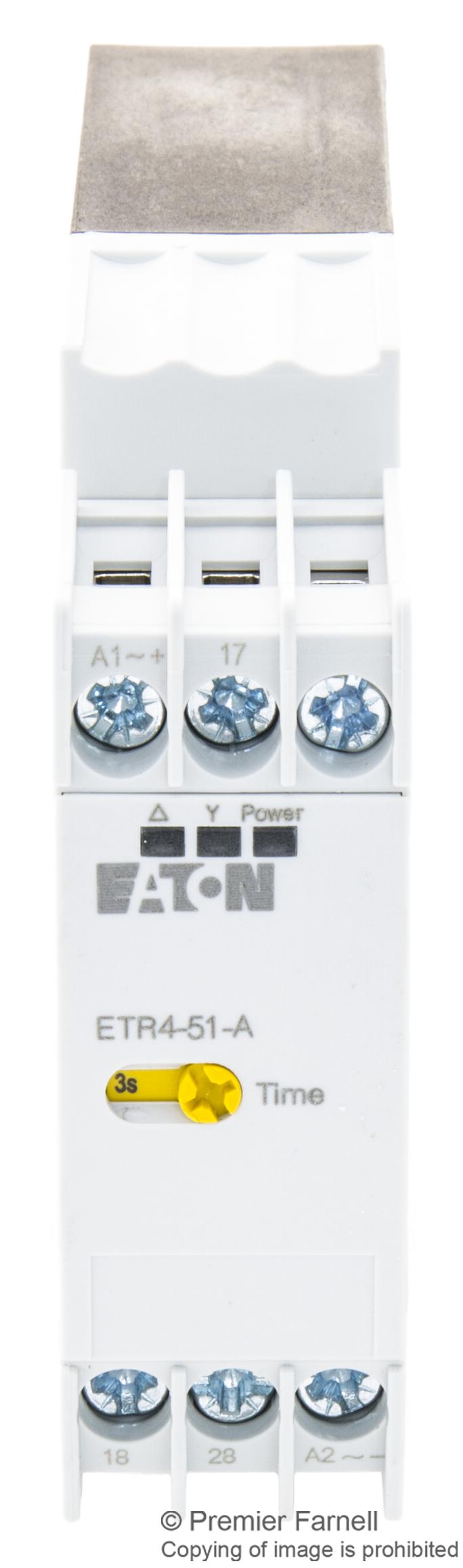

ETR4-51-A Timer, Star-Delta Eaton Moeller

EATON MOELLERUGS :ETR4-51-A Code de commande:7220583

Prix:
Prix ​​promotionnel€160,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

EATON MOELLER - ETR4-51-A - Analogue Timer, ETR4, Star-Delta, 3 s, 60 s, 1 Ranges, 1 Changeover Relay

  • Product Range: ETR4 Series
  • Timer Functions: Star-Delta
  • Time Min: 3s
  • Time Max: 60s
  • No. of Timing Ranges: 1Ranges
  • Timer Output: 1 Changeover Relay
  • Supply Voltage Max: 240V
  • Current Rating Nom: 3A
  • Connection / Termination: Screw Terminals
  • SVHC: No SVHC (17-Dec-2015)
  • Contact Configuration: 2CO
  • Contact Current AC Max: 3A
  • Contact Voltage AC Max: 440V
  • Delay Time Range: 3s to 60s
  • External Depth: 103mm
  • External Length / Height: 82.5mm
  • External Width: 22.5mm
  • Frequency Max: 60Hz
  • Frequency Min: 50Hz
  • Nom Input Voltage: 240V
  • Operating Time Range: 3 to 60 secs
  • Relay Mounting: DIN Rail
  • Supply Voltage AC Max: 240V
  • Supply Voltage AC Min: 24V
  • Supply Voltage DC Max: 240V
  • Supply Voltage DC Min: 24V
  • Supply Voltage Min: 24V
  • Timing Adjustment: Screwdriver Slot
