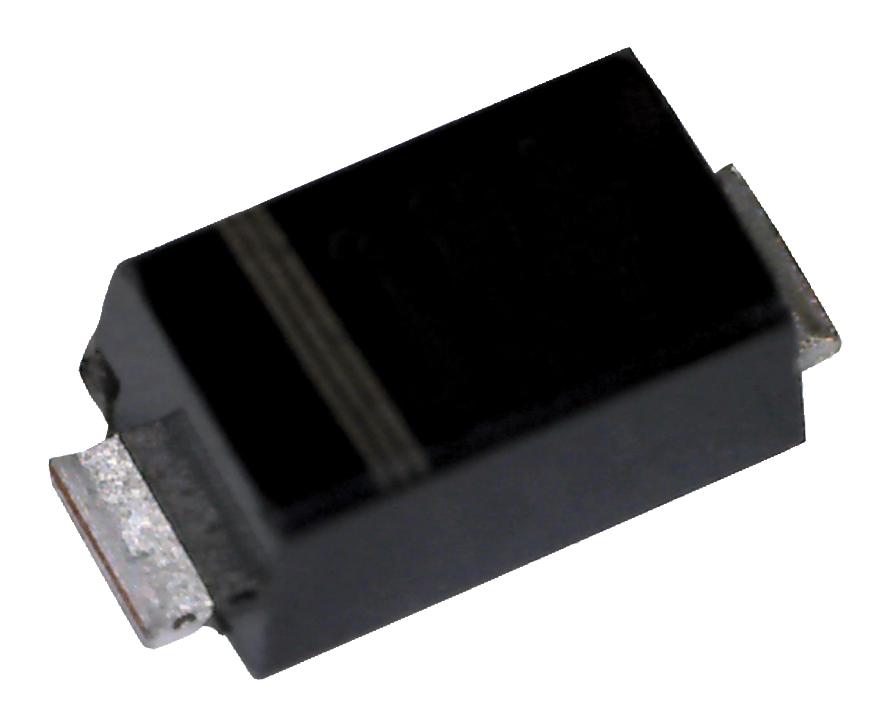

ONSEMI - ESD9L5.0ST5G - TVS Diode, ESD9L, Unidirectional, 5 V, 9.8 V, SOD-923, 2 Pins
- Product Range: ESD9L Series
- TVS Polarity: Unidirectional
- Reverse Stand-Off Voltage Vrwm: 5V
- Clamping Voltage Vc Max: 9.8V
- Diode Case Style: SOD-923
- No. of Pins: 2Pins
- Breakdown Voltage Min: 5.4V
- Breakdown Voltage Max: 5.4V
- Peak Pulse Power Dissipation: -
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (15-Jan-2018)
- Breakdown Voltage: 6.1V
- Capacitance Cd @ Vr Typ: 0.9pF
- Diode Type: Unidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Peak Pulse Current Ippm: 1A
- Power Dissipation Pd: 150mW
- Stand-off Voltage: 5V
- Termination Type: Surface Mount Device
