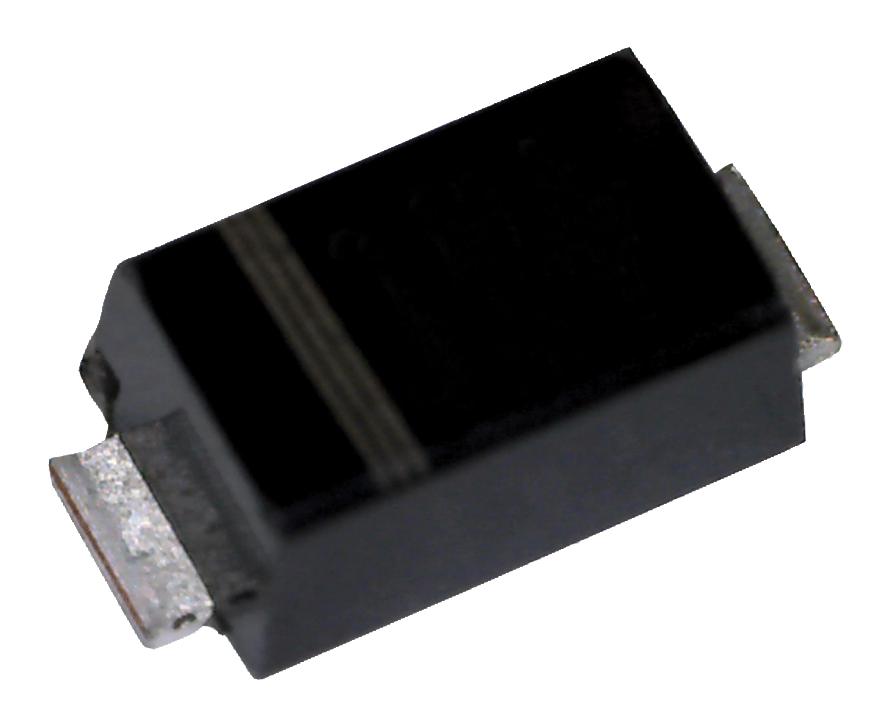

ES1HL R3G Diode, Ultra-Fast SMF 1A 500v Taiwan Semiconductor

TAIWAN SEMICONDUCTORUGS :ES1HL R3G Code de commande:1559130

Prix:
Prix ​​promotionnel€0,68

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (604 unité)

Documents et téléchargements

description

TAIWAN SEMICONDUCTOR - ES1HL R3G - Fast / Ultrafast Diode, 500 V, 1 A, Single, 1.7 V, 35 ns, 30 A

  • Repetitive Reverse Voltage Vrrm Max: 500V
  • Forward Current If(AV): 1A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.7V
  • Reverse Recovery Time trr Max: 35ns
  • Forward Surge Current Ifsm Max: 30A
  • Operating Temperature Max: 150°C
  • Diode Case Style: SMD
  • No. of Pins: 2 Pin
  • Product Range: ES1H Series
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current Ifsm: 30A
  • Diode Type: Fast Recovery
  • Forward Voltage: 1.7V
  • Junction Temperature Tj Max: 150°C
  • Junction Temperature Tj Min: -55°C
  • Junction to Case Thermal Resistance A: 85°C/W
  • No. of Pins: 2Pins
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Reverse Recovery Time trr Typ: 35ns
  • Termination Type: Surface Mount Device
