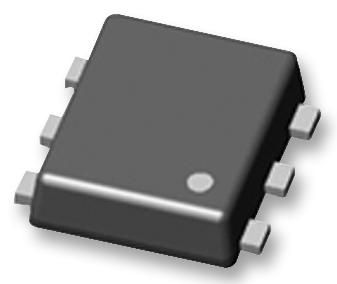

ROHM - EMD22T2R - Bipolar Pre-Biased / Digital Transistor, NPN and PNP Complement, 50 V, 100 mA, 4.7 kohm, 47 kohm
- Digital Transistor Polarity: NPN and PNP Complement
- Collector Emitter Voltage V(br)ceo: 50V
- Continuous Collector Current Ic: 100mA
- Base Input Resistor R1: 4.7kohm
- Base-Emitter Resistor R2: 47kohm
- Resistor Ratio, R1 / R2: -
- RF Transistor Case: EMT
- No. of Pins: 6 Pin
- Product Range: EMD22 Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Ic Continuous a Max: 100mA
- DC Collector Current: 100mA
- DC Current Gain hFE: 80hFE
- Gain Bandwidth ft Typ: 250MHz
- Hfe Min: 80
- Module Configuration: Dual
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Pd: 150mW
- Transistor Case Style: EMT
- Transistor Polarity: NPN, PNP
- Transistor Type: General Purpose
- Transition Frequency ft: 250MHz
