ELWIST 4012 PG9 Plug, Angled Hirschmann

HIRSCHMANNUGS :ELWIST 4012 PG9 Code de commande:8312915

Prix:
Prix ​​promotionnel€23,30

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (129 unité)

Documents et téléchargements

description

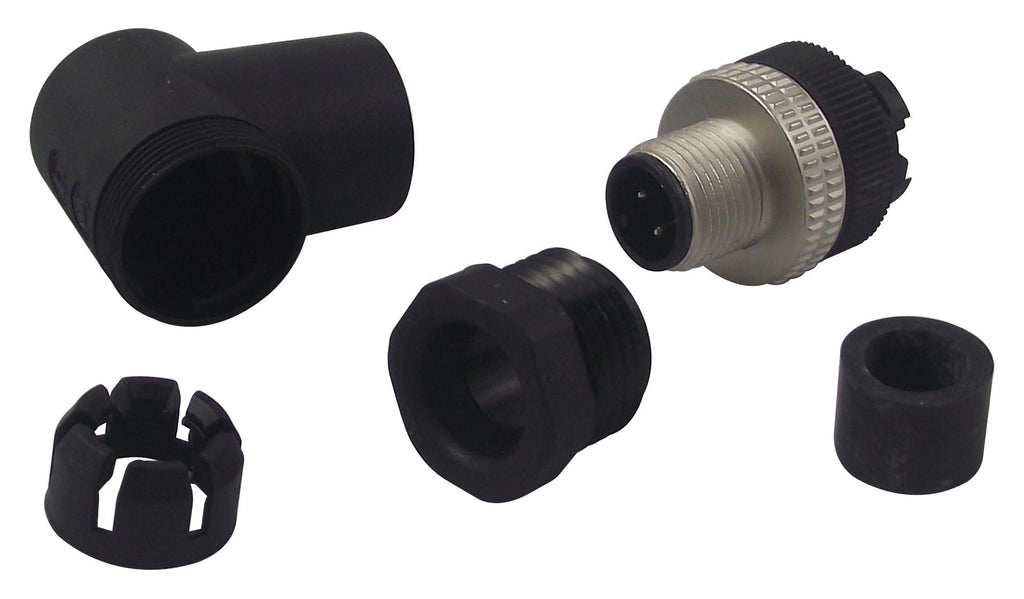

HIRSCHMANN - ELWIST 4012 PG9 - Circular Connector, E Series M12, Cable Mount Plug, 4 Contacts, Screw Pin, Nylon (Polyamide) Body

  • Product Range: E Series M12
  • Circular Connector Shell Style: Cable Mount Plug
  • No. of Contacts: 4Contacts
  • Circular Contact Type: Screw Pin
  • Coupling Style: -
  • Connector Body Material: Nylon (Polyamide) Body
  • Connector Body Plating: -
  • Contact Material: Brass
  • Contact Plating: Tin
  • SVHC: Lead (27-Jun-2018)
  • Approval Bodies: UL
  • Cable Diameter Max: 8mm
  • Cable Diameter Min: 6mm
  • Colour: Black
  • Conductor Area CSA: 0.75mm²
  • Connector Insert Type: M12-4
  • Connector Mounting: Cable Mount
  • Connector Shell Size: M12
  • Connector Type: Circular Industrial
  • Contact Gender: Pin
  • Contact Plating: Tin Plated Contacts
  • Contact Termination: Screw
  • Contact Termination Type: Screw
  • Current Rating: 4A
  • Flammability Rating: UL94V-2
  • Gender: Plug
  • IP / NEMA Rating: IP67
  • Operating Temperature Max: +90°C
  • Operating Temperature Min: -25°C
  • Standard: IEC 61076-2-101/IEC 60947-5-2
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 250V
