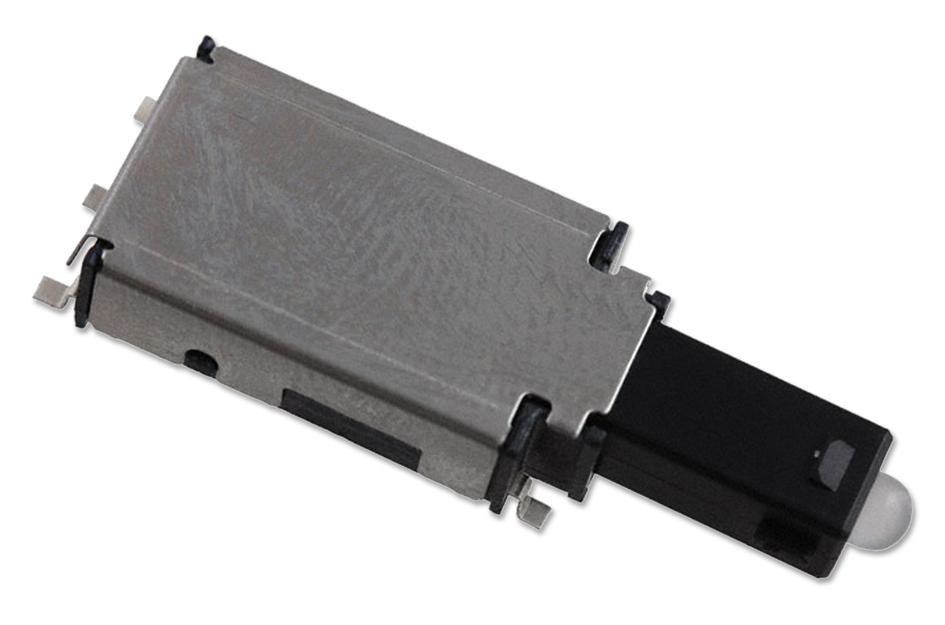

C&K COMPONENTS - ELUMOATHQ7C12 - Pushbutton Switch, ELUM, SPDT, On-(On), Rectangular, Black
- Product Range: ELUM Series
- Contact Configuration: SPDT
- Switch Operation: On-(On)
- Contact Current Max: 250mA
- Contact Voltage AC Nom: -
- Illumination Colour: Blue
- Contact Voltage DC Nom: 50V
- Switch Terminals: PC Pin
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Rectangular
- Actuator / Cap Colour: Black
- Body Depth: 20.58mm
- Contact Current DC Max: 250mA
- Contact Resistance Max: 50mohm
- Contact Voltage DC Min: 20mV
- Contact Voltage VDC: 50V
- External Depth: 28.2mm
- External Length / Height: 5.16mm
- External Width: 11.43mm
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- LED Colour: Blue
- Material: Glass Filled LCP
- No. of Electrical Operations: 30000
- No. of Mechanical Operations: 30000
- Operating Force: 2.5N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Pushbutton Actuator Style: Rectangular
- Pushbutton Switch Type: Standard
- Switch Mounting: Through Hole
- Switching Current DC Max: 250mA
- Switching Current DC Min: 0.01mA
- Switching Power Max: 3.5VA
